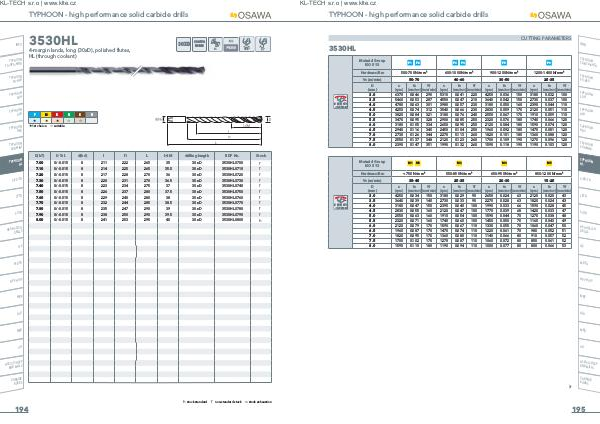

KL-TECH s.r.o | www.klte.cz
TYPHOON - high performance solid carbide drills
INFO
N
TYPHOO
HTA
TA-HTA-4
3530HL
30XD
4-margin lands, long (30xD), polished flutes,
HL (through coolant)
OSAWA
NORM
135°
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
N
TYPHOO
HRC
P M K N S
+ + + , ,
+ 1st choice
H
, suitable
N
TYPHOO
I
SUH MIN
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
D(h7) D Tol. d(h6) l l1 L l-4M drilling length EDP No. Stock
7.00 0/-0.015 8 211 222 265 35 30 x D 3530HL0700 f
7.10 0/-0.015 8 214 225 265 35.5 30 x D 3530HL0710 f
7.20 0/-0.015 8 217 228 270 36 30 x D 3530HL0720 f
7.30 0/-0.015 8 220 231 270 36.5 30 x D 3530HL0730 f
7.40 0/-0.015 8 223 234 275 37 30 x D 3530HL0740 f
7.50 0/-0.015 8 226 237 280 37.5 30 x D 3530HL0750 f
7.60 0/-0.015 8 229 240 280 38 30 x D 3530HL0760 f
7.70 0/-0.015 8 232 244 285 38.5 30 x D 3530HL0770 f
7.80 0/-0.015 8 235 247 290 39 30 x D 3530HL0780 f
7.90 0/-0.015 8 238 250 290 39.5 30 x D 3530HL0790 f
8.00 0/-0.015 8 241 253 295 40 30 x D 3530HL0800 h
/CO
HSS-HSS
DRILLS
G2
MDTA
P
HF VH/U
MEF
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
h stock standard
194
f non-standard stock
m stock exhaustion
