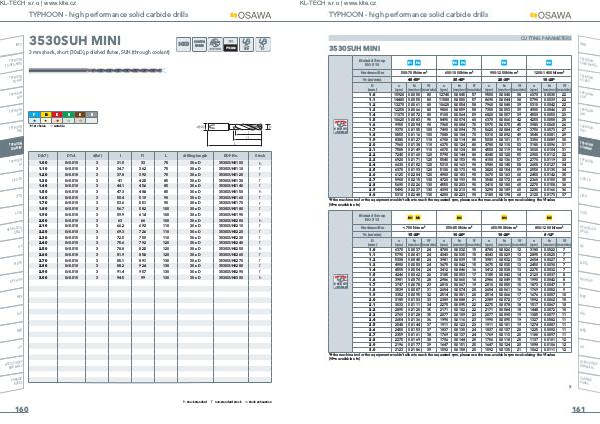

TYPHOON- high performance solid carbide drills

3530SUH MINI

CUTTING PARAMETERS

INFO

Material Group ISO 513

P1 P2 P3 P4 P5 P6

TYPHOON

TA-HTA-4HTA

Ø RUN OUT < 0.02mm

Hardness / Rm 500-700 N / mm ² 600-1000 N / mm ² 900-1200 N / mm ² 1200-1400 N / mm ² Vc( m / min) 45-55 * 35-45 * 25-35 * 15-25 *

D( mm) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min)

1.0	15920	0.0050	80	12740	0.0045	57	9550	0.0040	38	6370	0.0035	22
1.1	14480	0.0055	80	11580	0.0050	57	8690	0.0044	38	5790	0.0039	22
1.2	13270	0.0061	80	10620	0.0054	58	7960	0.0048	39	5310	0.0042	22
1.3	12250	0.0066	80	9800	0.0059	58	7350	0.0053	39	4900	0.0046	23
1.4	11370	0.0072	80	9100	0.0064	59	6820	0.0057	39	4550	0.0050	23
1.5	10620	0.0083	90	8490	0.0074	60	6370	0.0066	42	4250	0.0058	25
1.6	9950	0.0094	90	7960	0.0084	70	5970	0.0075	45	3980	0.0065	26
1.7	9370	0.0105	100	7490	0.0094	70	5620	0.0084	47	3750	0.0073	27
1.8	8850	0.0116	100	7080	0.0104	70	5310	0.0092	49	3540	0.0081	29
1.9	8380	0.0127	110	6700	0.0114	80	5030	0.0101	51	3350	0.0089	30
2.0	7960	0.0138	110	6370	0.0124	80	4780	0.0110	53	3180	0.0096	31
2.1	7580	0.0149	110	6070	0.0134	80	4550	0.0119	54	3030	0.0104	31
2.2	7240	0.0160	120	5790	0.0144	80	4340	0.0128	55	2900	0.0112	32
2.3	6920	0.0171	120	5540	0.0153	90	4150	0.0136	57	2770	0.0119	33
2.4	6630	0.0182	120	5310	0.0163	90	3980	0.0145	58	2650	0.0127	34
2.5	6370	0.0193	120	5100	0.0173	90	3820	0.0154	59	2550	0.0135	34
2.6	6120	0.0204	120	4900	0.0183	90	3670	0.0163	60	2450	0.0142	35
2.7	5900	0.0215	130	4720	0.0193	90	3540	0.0172	60	2360	0.0150	35
2.8	5690	0.0226	130	4550	0.0203	90	3410	0.0180	60	2270	0.0158	36
2.9	5490	0.0237	130	4390	0.0213	90	3290	0.0189	60	2200	0.0166	36
3.0	5310	0.0248	130	4250	0.0223	90	3180	0.0198	60	2120	0.0173	37

* if the machine tool or the equipment wouldn’ t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value

( Vf = n available x fn)

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

TYPHOON HRC

TYPHOON SUH MINI

TYPHOON HL

C-SD-TA

LFTA

Material Group ISO 513

M1 M2 M3 M4 M5

SUTA

Ø RUN OUT < 0.02mm

Hardness / Rm < 750 N / mm ² 550-850 N / mm ² 650-950 N / mm ² 850-1200 N / mm ² Vc( m / min) 15-25 * 10-20 * 10-20 * 8-12 *

D( mm) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min)

1.0	6370	0.0037	24	4780	0.0032	15	4780	0.0026	12	3180	0.0022	7
1.1	5790	0.0041	24	4343	0.0035	15	4343	0.0029	13	2895	0.0025	7
1.2	5308	0.0045	24	3981	0.0039	15	3981	0.0032	13	2654	0.0027	7
1.3	4900	0.0050	24	3675	0.0042	15	3675	0.0035	13	2450	0.0030	7
1.4	4550	0.0054	24	3412	0.0046	16	3412	0.0038	13	2275	0.0032	7
1.5	4246	0.0062	26	3185	0.0053	17	3185	0.0043	14	2123	0.0037	8
1.6	3981	0.0070	28	2986	0.0060	18	2986	0.0049	15	1990	0.0042	8
1.7	3747	0.0078	29	2810	0.0067	19	2810	0.0055	15	1873	0.0047	9
1.8	3539	0.0087	31	2654	0.0074	20	2654	0.0061	16	1769	0.0052	9
1.9	3352	0.0095	32	2514	0.0081	20	2514	0.0066	17	1676	0.0057	10
2.0	3185	0.0103	33	2389	0.0088	21	2389	0.0072	17	1592	0.0062	10
2.1	3033	0.0111	34	2275	0.0095	22	2275	0.0078	18	1517	0.0067	10
2.2	2895	0.0120	35	2171	0.0102	22	2171	0.0084	18	1448	0.0072	10
2.3	2769	0.0128	35	2077	0.0109	23	2077	0.0090	19	1385	0.0077	11
2.4	2654	0.0136	36	1990	0.0116	23	1990	0.0095	19	1327	0.0082	11
2.5	2548	0.0144	37	1911	0.0123	23	1911	0.0101	19	1274	0.0087	11
2.6	2450	0.0153	37	1837	0.0130	24	1837	0.0107	20	1225	0.0092	11
2.7	2359	0.0161	38	1769	0.0137	24	1769	0.0113	20	1180	0.0097	11
2.8	2275	0.0169	38	1706	0.0144	25	1706	0.0118	20	1137	0.0101	12
2.9	2196	0.0177	39	1647	0.0151	25	1647	0.0124	20	1098	0.0106	12
3.0	2123	0.0186	39	1592	0.0158	25	1592	0.0130	21	1062	0.0111	12

* if the machine tool or the equipment wouldn’ t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value

( Vf = n available x fn)
