TYPHOON- high performance solid carbide drills

INFO

TYPHOON TA-HTA-4HTA

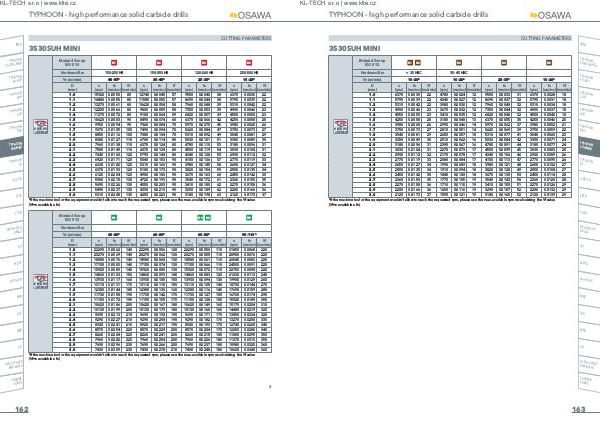

3530SUH MINI

Material Group ISO 513

CUTTING PARAMETERS

K1 K2 K3 K4

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

TYPHOON HRC

TYPHOON SUH MINI

TYPHOON HL

C-SD-TA

LFTA

Ø RUN OUT < 0.02mm

Hardness / Rm 150-250 HB 150-350 HB 120-260 HB 250-500 HB Vc( m / min) 45-55 * 35-45 * 25-35 * 15-25 *

D( mm) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min)

1.0	15920	0.0050	80	12740	0.0045	57	9550	0.0040	38	6370	0.0035	22
1.1	14480	0.0055	80	11580	0.0050	57	8690	0.0044	38	5790	0.0039	22
1.2	13270	0.0061	80	10620	0.0054	58	7960	0.0048	39	5310	0.0042	22
1.3	12250	0.0066	80	9800	0.0059	58	7350	0.0053	39	4900	0.0046	23
1.4	11370	0.0072	80	9100	0.0064	59	6820	0.0057	39	4550	0.0050	23
1.5	10620	0.0083	90	8490	0.0074	60	6370	0.0066	42	4250	0.0058	25
1.6	9950	0.0094	90	7960	0.0084	70	5970	0.0075	45	3980	0.0065	26
1.7	9370	0.0105	100	7490	0.0094	70	5620	0.0084	47	3750	0.0073	27
1.8	8850	0.0116	100	7080	0.0104	70	5310	0.0092	49	3540	0.0081	29
1.9	8380	0.0127	110	6700	0.0114	80	5030	0.0101	51	3350	0.0089	30
2.0	7960	0.0138	110	6370	0.0124	80	4780	0.0110	53	3180	0.0096	31
2.1	7580	0.0149	110	6070	0.0134	80	4550	0.0119	54	3030	0.0104	31
2.2	7240	0.0160	120	5790	0.0144	80	4340	0.0128	55	2900	0.0112	32
2.3	6920	0.0171	120	5540	0.0153	90	4150	0.0136	57	2770	0.0119	33
2.4	6630	0.0182	120	5310	0.0163	90	3980	0.0145	58	2650	0.0127	34
2.5	6370	0.0193	120	5100	0.0173	90	3820	0.0154	59	2550	0.0135	34
2.6	6120	0.0204	120	4900	0.0183	90	3670	0.0163	60	2450	0.0142	35
2.7	5900	0.0215	130	4720	0.0193	90	3540	0.0172	61	2360	0.0150	35
2.8	5690	0.0226	130	4550	0.0203	90	3410	0.0180	62	2270	0.0158	36
2.9	5490	0.0237	130	4390	0.0213	90	3290	0.0189	62	2200	0.0166	36
3.0	5310	0.0248	130	4250	0.0223	90	3180	0.0198	63	2120	0.0173	37

* if the machine tool or the equipment wouldn’ t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value( Vf = n available x fn)

SUTA

Material Group ISO 513

N1 N2 N3 N4 N5

HSS-HSS / CO DRILLS

MDTA

HF VH / UP

MEF

ALU

MEX

HSS / CO-HSSP

END MILLS

Ø RUN OUT < 0.02mm

Hardness / Rm
Vc( m / min)	60-80 *	60-80 *	60-80 *	90-110 *

D( mm) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min)

1.0	22290	0.0062	140	22290	0.0056	120	22290	0.0050	110	31850	0.0068	220
1.1	20270	0.0069	140	20270	0.0062	130	20270	0.0055	110	28950	0.0076	220
1.2	18580	0.0076	140	18580	0.0068	130	18580	0.0061	110	26540	0.0083	220
1.3	17150	0.0083	140	17150	0.0074	130	17150	0.0066	110	24500	0.0091	220
1.4	15920	0.0089	140	15920	0.0080	130	15920	0.0072	110	22750	0.0098	220
1.5	14860	0.0103	150	14860	0.0093	140	14860	0.0083	120	21230	0.0113	240
1.6	13930	0.0117	160	13930	0.0105	150	13930	0.0094	130	19900	0.0129	260
1.7	13110	0.0131	170	13110	0.0118	150	13110	0.0105	140	18730	0.0144	270
1.8	12380	0.0144	180	12380	0.0130	160	12380	0.0116	140	17690	0.0159	280
1.9	11730	0.0158	190	11730	0.0142	170	11730	0.0127	150	16760	0.0174	290
2.0	11150	0.0172	190	11150	0.0155	170	11150	0.0138	150	15920	0.0189	300
2.1	10620	0.0186	200	10620	0.0167	180	10620	0.0149	160	15170	0.0204	310
2.2	10130	0.0199	200	10130	0.0179	180	10130	0.0160	160	14480	0.0219	320
2.3	9690	0.0213	210	9690	0.0192	190	9690	0.0171	170	13850	0.0234	320
2.4	9290	0.0227	210	9290	0.0204	190	9290	0.0182	170	13270	0.0250	330
2.5	8920	0.0241	210	8920	0.0217	190	8920	0.0193	170	12740	0.0265	340
2.6	8570	0.0254	220	8570	0.0229	200	8570	0.0204	170	12250	0.0280	340
2.7	8260	0.0268	220	8260	0.0241	200	8260	0.0215	180	11800	0.0295	350
2.8	7960	0.0282	220	7960	0.0254	200	7960	0.0226	180	11370	0.0310	350
2.9	7690	0.0296	230	7690	0.0266	200	7690	0.0237	180	10980	0.0325	360
3.0	7430	0.0309	230	7430	0.0278	210	7430	0.0248	180	10620	0.0340	360

* if the machine tool or the equipment wouldn’ t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value( Vf = n available x fn)

CARBIDE BURRS

162
