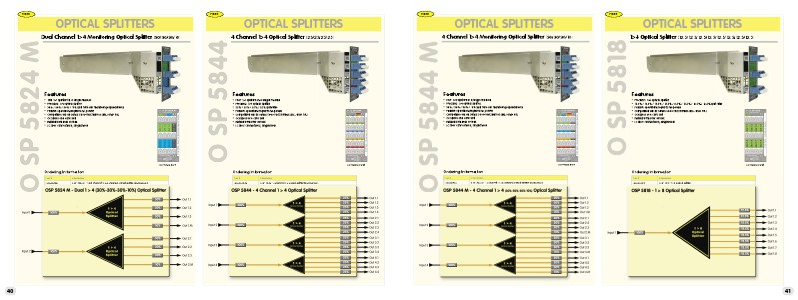

FIBER FIBER OPTICAL SPLITTERS OPTICAL SPLITTERS Features • • • • • • • • 1>8 Optical Splitter (12.5/12.5/12.5/12.5/12.5/12.5/12.5/12.5) O SP 5818 O SP 5844 M 4 Channel 1>4 Monitoring Optical Splitter (30/30/30/10) Features Four 1>4 splitters in a single module Precision 1>4 optical splitter 30% / 30% / 30% / 10% split ratio (for monitoring applications) Passive operation (requires no power) Compatible will all Series 5000 rack frames (2RU and 1RU) Occupies one card slot Installs from rear of rack LC ?ber connections, singlemode • • • • • • • Precision 1>8 optical splitter 12.5% / 12.5% / 12.5% / 12.5% / 2.5% / 12.5% / 12.5% / 12.5% split ratio Passive operation (requires no power) Compatible will all Series 5000 rack frames (2RU and 1RU) Occupies one card slot Installs from rear of rack LC ?ber connections, singlemode Connection Panel Ordering Information Connection Panel Ordering Information Part # Description Part # Description 1000025844 O SP 5844 M - 4 Channel 1>4 Monitoring Optical Splitter (30/30/30/10) 1000005818 O SP 5818 - 1>8 Optical Splitter 41
