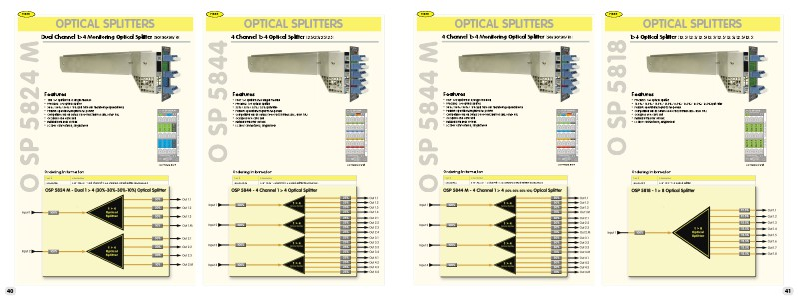

FIBER FIBER OPTICAL SPLITTERS OPTICAL SPLITTERS Features • • • • • • • • 4 Channel 1>4 Optical Splitter (25/25/25/25) O SP 5844 O SP 5824 M Dual Channel 1>4 Monitoring Optical Splitter (30/30/30/10) Features Two 1>4 splitters in a single module Precision 1>4 optical splitter 30% / 30% / 30% / 10% split ratio (for monitoring applications) Passive operation (requires no power) Compatible will all Series 5000 rack frames (2RU and 1RU) Occupies one card slot Installs from rear of rack LC ?ber connections, singlemode • • • • • • • • Four 1>4 splitters in a single module Precision 1>4 optical splitter 25% / 25% / 25% / 25% split ratio Passive operation (requires no power) Compatible will all Series 5000 rack frames (2RU and 1RU) Occupies one card slot Installs from rear of rack LC ?ber connections, singlemode Connection Panel Ordering Information Connection Panel Ordering Information Part # 40 Description Part # Description 1000025824 O SP 5824 M - Dual Channel 1>4 Monitoring Optical Splitter (30/30/30/10) 1000005844 O SP 5844 - 4 Channel 1>4 Optical Splitter (25/25/25/25)
