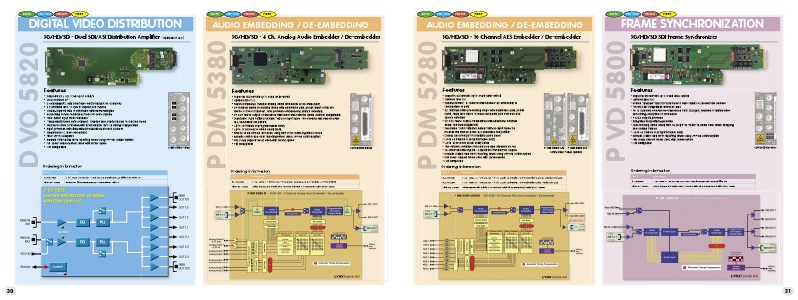

HD 1.5G HD 3G SDTV FIBER AUDIO EMBEDDING / DE-EMBEDDING P DM 5280 3G/HD/SD - 16 Channel AES Embedder / De-embedder Features • Supports SDI formats up to 3Gbit (auto-detect) • Optional ?ber I/O • Switch between 16 channel embedder or de-embedder or combination of both • 32 channel audio processing stage with adjustable gain, phase invert, mute and stereo to mono mixdown plus overload and silence detection • 32 x 32 mono output crossbar for embedder and external audio channel assignment • Selectable “Auto Pattern Function” with no input video the module will embed audio in a selectable test pattern • DolbyE Synchronizer to maintain Guard Band • Up to 62 frames of programmable delay • Up to 10 seconds audio delay (total) • Two versions available for balanced and unbalanced AES • All external audio inputs / outputs are transformer coupled • Remote control and error reporting when using APPolo control system • Full SNMP support when used with server option • Hot swappable HD 1.5G HD 3G FIBER FRAME SYNCHRONIZATION 3G/HD/SD SDI Frame Synchronizer P VD 5800 SDTV Features • Supports SDI formats up to 3Gbit (auto-detect) • Optional ?ber I/O • Robust “?ywheel” synchronization for a wide variety of problematic sources • “Cross lock” compatible reference input • All 16 channels of audio de-embedded from SDI input, delayed to match video processing delay and re-embedded • 4 x SDI outputs provided • Integrated test pattern generator • Auto-tracking audio delay with no “pops” or “clicks” in audio even when dropping and adding frames • Up to 62 frames of programmable delay • Remote control and error reporting when using APPolo control system • Full SNMP support when used with server option • Hot swappable P DM 5280 UO P DM 5280 DO Connection Panel Options Ordering Information Connection Panel Ordering Information Part # Description 6155085280 P DM 5280 UO - 3G/HD/SD - 16 Ch. Audio Embedder / De-embedder (MiniDIN unbalanced AES) Part # Description 6155075280 P DM 5280 DO - 3G/HD/SD - 16 Ch. Audio Embedder / De-embedder (SubD - balanced AES) 6155115800 P VD 5800 O - 3G/HD/SD SDI Frame Synchronizer with optonal ?ber I/O Fiber SFP Option Select transmitter (Table A) or receiver (Table B) or transceiver (Table E) SFP option Fiber SFP Option Select transmitter (Table A) or receiver (Table B) or transceiver (Table E) SFP option 31
