LYNX Series 5000 - October 2013 October 2013

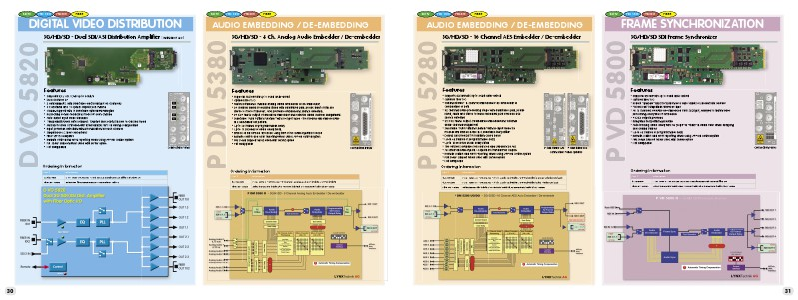

HD 1.5G HD 3G SDTV FIBER DIGITAL VIDEO DISTRIBUTION D VO 5820 3G/HD/SD - Dual SDI/ASI Distribution Ampli?er ( With ?ber I/O ) Features • • • • • • • • • • • • • • • Supports SDI / ASI / DVB up to 3Gbit/s Dual channel 1>4 2 optical inputs, with selectable electrical input on channel 2 3 x electrical and 1 x optical outputs per channel CWDM support with 18 selectable optical wavelengths Reclocking or non-reclocking mode for each channel Auto-detect input video standard Transparently pass data between 15Mbit/s and 3Gbit/s in non re-clocked mode. Microprocessor controlled with internal ?ash ram for storing con?guration Input presence detection with LED indication for each channel Singlemode LC ?ber connections Fiber SFP in backplane Remote control and error reporting when using APPolo control system Full SNMP support when used with server option Hot swappable Ordering Information HD 1.5G HD 3G FIBER AUDIO EMBEDDING / DE-EMBEDDING 3G/HD/SD - 8 Ch. Analog Audio Embedder / De-embedder P DM 5380 SDTV Features Connection Panel • Supports SDI formats up to 3Gbit (auto-detect) • Optional ?ber I/O • Switch between 8 channel analog audio embedder or de-embedder • 24 channel audio processing stage with adjustable gain, phase invert, mute and stereo to mono mixdown. Also provides overload and silence detection. • 24 x 24 mono output crossbar for embedder and external audio channel assignment. • Selectable “Auto Pattern Function” with no input video - the module will embed audio in a selectable test pattern. • Up to 62 frames of programmable delay. • Up to 10 seconds of audio delay (total). • Embed or de-embed Timecode using two of the audio inputs if needed. • Remote control and error reporting when using APPolo control system • Full SNMP support when used with server option • Hot swappable Connection Panel Ordering Information Part # D VO 5820 3G/HD/SD - Dual SDI/ASI Distribution Ampli?er with Fiber I/O Part # Description Fiber SFP Option Select two ?ber transceiver SFP options from Table E 6155035380 P DM 5380 O - 3G/HD/SD - 8 Channel Analog Audio Embedder / De-embedder Fiber SFP Option 30 Description 5156205820 Select transmitter (Table A) or receiver (Table B) or transceiver (Table E) SFP option

LYNX Series 5000 - October 2013 October 2013 | Page 30
