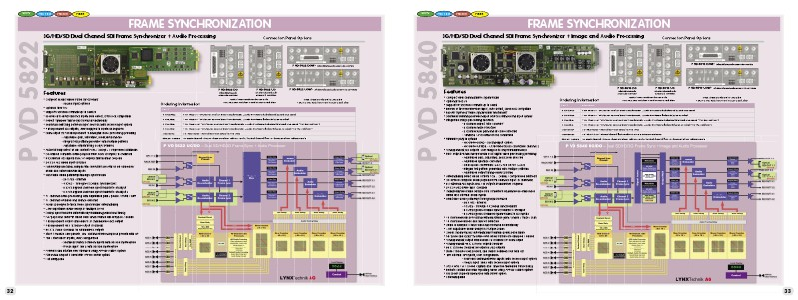

SDTV HD 1.5G HD 3G FIBER FRAME SYNCHRONIZATION P VD 5822 3G/HD/SD Dual Channel SDI Frame Synchronizer + Audio Processing P VD 5822 DOW - Balanced AES3 Audio 25 pin SubD Connector P VD 5822 DO Features • Compact dual channel frame synchronizer - Second input optional • Optional ?ber I/O • Supports SDI video formats up to 3Gbit/s • Bi-level or tri-level reference input, auto detect, cross lock compatible • Robust “?ywheel” frame synchronizer functionality • Seamless switching between input sources (with second input option) • 4 independent SDI outputs, user mapped to inputs as required • Each output (4) has independent 10 bit digital video processing providing: - Adjustable gain, saturation, black level and hue - Integral test pattern generator with multiple patterns - Adjustable output timing delay (12 frame) • Automatically detect audio content PCM / DolbyE / compressed bitstream • De-embed complete audio payload from each SDI input (16 channels) • 8 x external AES inputs and / or outputs (transformer coupled) • 24 x 24 AES audio input crossbar • Individually selectable sample rate converters (on/off) for de-embedded audio and external audio inputs • Selectable audio pathways through synchronizer - 20 x AES - Internal - 4 x AES - Through 4 x DolbyE synchronizers - 8 x AES bypass channels synchronized to SDI input 1 - 8 x AES bypass channels synchronized to SDI input 2 • 48 channel audio processing with adjustable gain / phase / mute / sum • 48 channel overload and silence detection • Audio is delayed to track video synchronizer automatically • User adjustable audio delays in multiple zones • DolbyE synchronizers automatically maintain guard band timing • No “pops and clicks” in audio even when frames are dropped / added • 4 independent output embedders (16 channel) for each output • 4 independent 48 x 16 mono output crossbars • 80 x 16 mono crossbar for external AES outputs • Store 7 module user presets, and switch between any four presets with GPI • Two external GPI inputs, user con?gurable: - Seamless switch between inputs (with second input option) - Freeze input 1 (or 2 with second input option) • Powerful and intuitive user interface using APPolo control system • Full SNMP support if used with APPolo server option • Hot swappable 32 Connection Panel Options Balanced AES3 Audio 25 pin SubD Connector Ordering Information P VD 5822 UO P VD 5822 UOW - Unbalanced AES3id Audio MiniDin 75? Connectors Unbalanced AES3id Audio MiniDin 75? Connectors Note. These panels are for use in the R FR 5012 2RU Rack frame and occupy 2 rack slots Note. These panels are for use in the R FR 5041 1RU Rack frame and occupy 2 rack slots Part # Description 5155025822 P VD 5822 UO - 3G/HD/SD Dual SDI Frame Synchronizer + Audio Processing (unbalanced AES3id on MiniDin) 5155015822 P VD 5822 DO - 3G/HD/SD SDI Dual Frame Synchronizer + Audio Processing (balanced AES3 on SubD) 5155135822 P VD 5822 UOW - 3G/HD/SD Dual SDI Frame Synchronizer + Audio Processing (unbalanced AES3id on MiniDin) - For 1RU rack frame 5155125822 P VD 5822 DOW - 3G/HD/SD SDI Dual Frame Synchronizer + Audio Processing (balanced AES3 on SubD) - For 1RU rack f rame 1000000012 OC-5822-SCND - Second SDI input option for PVD 5822 FIber SFP Options For single channel Fiber I/O chose SFP’s from Tables A and C, for dual channel ?ber I/O chose SFPs from Tables B and D
