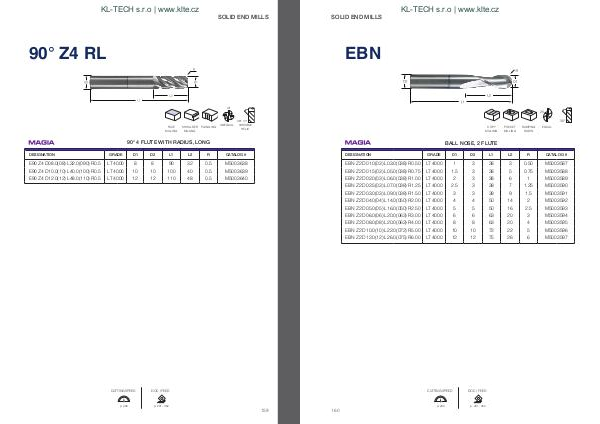

SOLID END MILLS
90° Z4 RL
4fl
38°- 41°
FACE
MILLING
SHOULDER
MILLING
PLUNGING
UNEQUAL
VARIABLE
HELIX
90° 4 FLUTE WITH RADIUS, LONG
DESIGNATION
GRADE
D1
D2
L1 L2 R CATALOG #
E90 Z4 D08.0(08) L32.0(090) R0.5 LT 4000 8 8 90 32 0.5 M5003638
E90 Z4 D10.0(10) L40.0(100) R0.5 LT 4000 10 10 100 40 0.5 M5003639
E90 Z4 D12.0(12) L48.0(110) R0.5 LT 4000 12 12 110 48 0.5 M5003640
CUTTING SPEED
p. 290
DOC / FEED
p. 291 - 302
159
