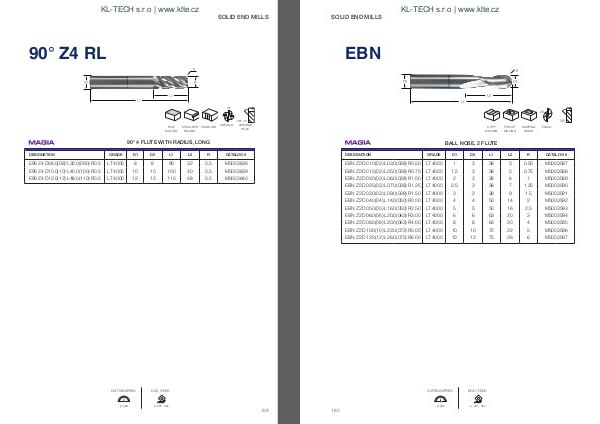

SOLID END MILLS
KL-TECH s.r.o | www.klte.cz
EBN
2fl
30°
COPY
MILLIMG
POCKET
MILLING RAMPING
DOWN
EQUAL
BALL NOSE, 2 FLUTE
DESIGNATION
GRADE
D1 D2 L1 L2 R CATALOG #
EBN Z2 D01.0(03) L03.0(038) R0.50 LT 4000 1 3 38 3 0.50 M5003587
EBN Z2 D01.5(03) L05.0(038) R0.75 LT 4000 1.5 3 38 5 0.75 M5003588
EBN Z2 D02.0(03) L06.0(038) R1.00 LT 4000 2 3 38 6 1 M5003589
EBN Z2 D02.5(03) L07.0(038) R1.25 LT 4000 2.5 3 38 7 1.25 M5003590
EBN Z2 D03.0(03) L09.0(038) R1.50 LT 4000 3 3 38 9 1.5 M5003591
EBN Z2 D04.0(04) L14.0(050) R2.00 LT 4000 4 4 50 14 2 M5003592
EBN Z2 D05.0(05) L16.0(050) R2.50 LT 4000 5 5 50 16 2.5 M5003593
EBN Z2 D06.0(06) L20.0(063) R3.00 LT 4000 6 6 63 20 3 M5003594
EBN Z2 D08.0(08) L20.0(063) R4.00 LT 4000 8 8 63 20 4 M5003595
EBN Z2 D10.0(10) L22.0(072) R5.00 LT 4000 10 10 72 22 5 M5003596
EBN Z2 D12.0(12) L26.0(075) R6.00 LT 4000 12 12 75 26 6 M5003597
CUTTING SPEED
p. 290
160
DOC / FEED
p. 291 - 302
