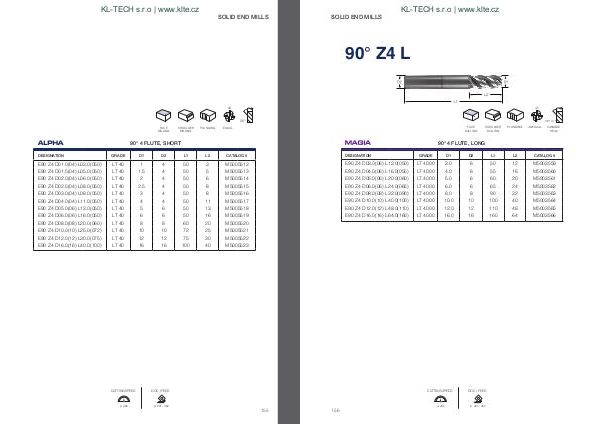

LAMINA - katalog | KL-TECH s.r.o. | www.klte.cz Lamina | Page 157

SOLID END MILLS
KL-TECH s.r.o | www.klte.cz
90° Z4 L
4fl
38°- 41°
FACE
MILLING
SHOULDER
MILLING
PLUNGING
UNEQUAL
VARIABLE
HELIX
90° 4 FLUTE, LONG
DESIGNATION
GRADE D1 D2 L1 L2 CATALOG #
E90 Z4 D03.0(06) L12.0(050) LT 4000 3.0 6 50 12 M5003559
E90 Z4 D04.0(06) L16.0(055) LT 4000 4.0 6 55 16 M5003560
E90 Z4 D05.0(06) L20.0(060) LT 4000 5.0 6 60 20 M5003561
E90 Z4 D06.0(06) L24.0(065) LT 4000 6.0 6 65 24 M5003562
E90 Z4 D08.0(08) L32.0(090) LT 4000 8.0 8 90 32 M5003563
E90 Z4 D10.0(10) L40.0(100) LT 4000 10.0 10 100 40 M5003564
E90 Z4 D12.0(12) L48.0(110) LT 4000 12.0 12 110 48 M5003565
E90 Z4 D16.0(16) L64.0(160) LT 4000 16.0 16 160 64 M5003566
CUTTING SPEED
p. 290
156
DOC / FEED
p. 291 - 302
