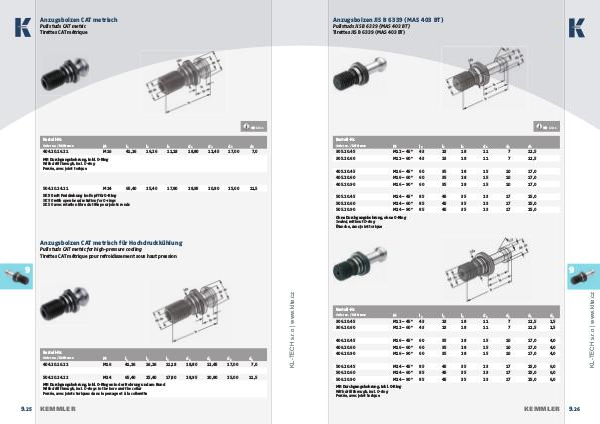

Anzugsbolzen CAT metrisch
Pull studs CAT metric
Tirettes CAT métrique
13. 04
Bestell-Nr.
Order no. / Référence
404.20.16.21
M
M16
l 1
41,26 l 2
16,26 l 3
11,18 d 1
18,80 d 2
12,45 d 3
17,00 d 4
7,0
65,40 25,40 17,80 28,95 20,80 25,00 11,5
Mit Durchgangsbohrung, inkl. O-Ring
With drill through, incl. O-ring
Percée, avec joint torique
504.20.24.21
M24
SK 50 mit Freidrehung im Kopf für O-Ring
SK 50 with open head rotation for O-rings
SK 50 avec rotation libre du tête pour joints ronds
Anzugsbolzen CAT metrisch für Hochdruckkühlung
Pull studs CAT metric for high-pressure cooling
Tirettes CAT métrique pour refroidissement sous haut pression
Bestell-Nr.
Order no. / Référence
404.20.16.22 M
M16 l 1
41,26 l 2
16,26 l 3
11,18 d 1
18,80 d 2
12,45 d 3
17,00 d 4
7,0
504.20.24.22 M24 65,40 25,40 17,80 28,95 20,80 25,00 11,5
Mit Durchgangsbohrung, inkl. O-Ringen in der Bohrung und am Bund
With drill through, incl. O-rings in the bore and the collar
Percée, avec joints toriques dans le percage et à la collerette
9. 25
