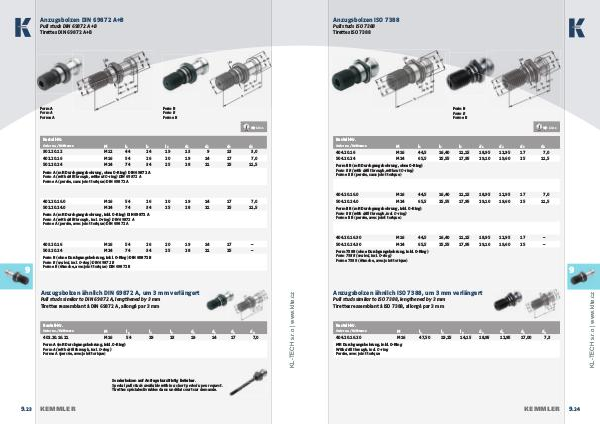

Anzugsbolzen ISO 7388
Pull studs ISO 7388
Tirettes ISO 7388
Form B
Form B
Forme B
13. 04
Bestell-Nr.
Order no. / Référence
404.20.16 M
M16 l 1
44,5 l 2
16,40 l 3
11,15 d 1
18,95 d 2
12,95 d 3
17 d 4
7,0
504.20.24 M24 65,5 25,55 17,95 29,10 19,60 25 11,5
Form II B (mit Durchgangsbohrung, ohne O-Ring)
Form II B (with drill through, without O-ring)
Forme II B (percée, sans joint torique)
404.20.16.0 M16 44,5 16,40 11,15 18,95 12,95 17 7,0
504.20.24.0 M24 65,5 25,55 17,95 29,10 19,60 25 11,5
Form II B (mit Durchgangsbohrung, inkl. O-Ring)
Form II B (with drill through, incl. O-ring)
Forme II B (percée, avec joint torique)
404.20.16.30 M16 44,5 16,40 11,15 18,95 12,95 17 –
504.20.24.30 M24 65,5 25,55 17,95 29,10 19,60 25 –
Form 7388 (ohne Durchgangsbohrung, inkl. O-Ring)
Form 7388 (sealed, incl. O-ring)
Forme 7388 (étanche, avec joint torique)
9
www.klte.cz
Anzugsbolzen ähnlich ISO 7388, um 3 mm verlängert
Pull studs similar to ISO 7388, lengthened by 3 mm
Tirettes ressemblant à ISO 7388, allongé par 3 mm
Bestell-Nr.
Order no. / Référence
404.20.16.20
M
M16
l 1
47,50
l 2
19,25
l 3
14,15
d 1
18,95
d 2
12,95
d 3
17,00
d 4
7,3
Mit Durchgangsbohrung, inkl. O-Ring
With drill through, incl. O-ring
Percée, avec joint torique
