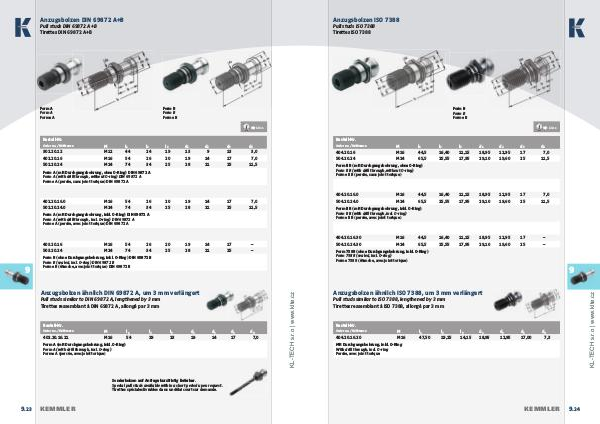

Anzugsbolzen DIN 69872 A+B
Pull studs DIN 69872 A+B
Tirettes DIN 69872 A+B
Form A
Form A
Forme A
Form B
Form B
Forme B
13. 04
Bestell-Nr.
Order no. / Référence
302.20.12 M
M12 l 1
44 l 2
24 l 3
19 d 1
13 d 2
9 d 3
13 d 4
3,0
402.20.16 M16 54 26 20 19 14 17 7,0
502.20.24 M24 74 34 25 28 21 25 11,5
Form A (mit Durchgangsbohrung, ohne O-Ring) DIN 69872 A
Form A (with drill through, without O-ring) DIN 69872 A
Forme A (percée, sans joint torique) DIN 69872 A
402.20.16.0 M16
