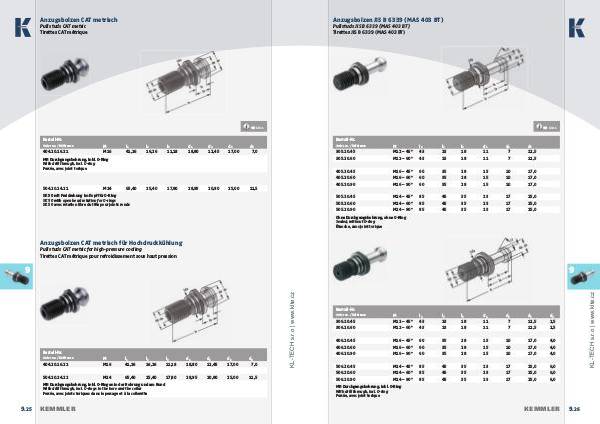

Anzugsbolzen JIS B 6339 (MAS 403 BT)
Pull studs JIS B 6339 (MAS 403 BT)
Tirettes JIS B 6339 (MAS 403 BT)
 13. 04

Bestell-Nr.
Order no. / Référence
305.20.45 M
M12 – 45° l 1
43 l 2
23 l 3
18 d 1
11 d 2
 7 d 3
12,5
305.20.60 M12 – 60° 43 23 18 11  7 12,5
405.20.45 M16 – 45° 60 35 28 15 10 17,0
405.20.60 M16 – 60° 60 35 28 15 10 17,0
405.20.90 M16 – 90° 60 35 28 15 10 17,0
505.20.45 M24 – 45° 85 45 35 23 17 25,0
505.20.60 M24 – 60° 85 45 35 23 17 25,0
505.20.90 M24 – 90° 85 45 35 23 17 25,0
Ohne Durchgangsbohrung, ohne O-Ring
Sealed, without O-ring
Étanche, sans joint torique
www.klte.cz
9
Bestell-Nr.
Order no. / Référence
306.20.45 M
M12 – 45° l 1
43 l 2
23 l 3
18 d 1
11 d 2
 7 d 3
12,5 d 4
2,5
306.20.60 M12 – 60° 43 23 18 11  7 12,5 2,5
406.20.45 M16 – 45° 60 35 28 15 10 17,0 4,0
406.20.60 M16 – 60° 60 35 28 15 10 17,0 4,0
406.20.90 M16 – 90° 60 35 28 15 10 17,0 4,0
506.20.45 M24 – 45° 85 45 35 23 17 25,0 6,0
506.20.60 M24 – 60° 85 45 35 23 17 25,0 6,0
506.20.90 M24 – 90° 85 45 35 23 17 25,0 6,0
Mit Durchgangsbohrung, inkl. O-Ring
With drill through, incl. O-ring
Percée, avec joint torique
