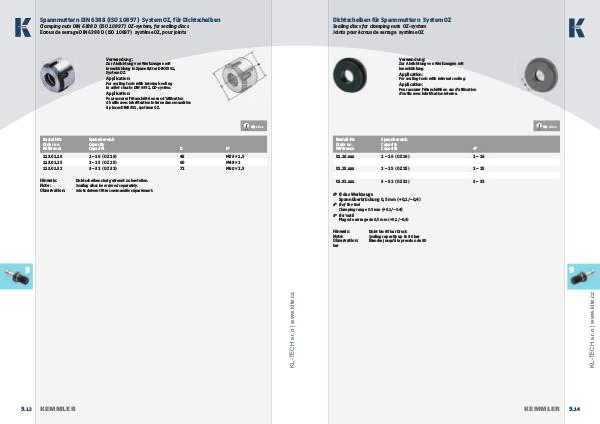

Dichtscheiben für Spannmuttern System OZ
Sealing discs for clamping nuts OZ-system
Joints pour écrous de serrage système OZ
Verwendung:
Zur Abdichtung von Werkzeugen mit
Innenkühlung.
Application:
For sealing tools with internal cooling.
Application:
Pour assurer l’étanchéité en cas d’utilisation
d’outils avec lubrifi cation interne.
13. 04
Bestell-Nr.
Order no.
Référence Spannbereich
Capacity
Capacité d*
01.16.xxx 2 – 16 (OZ 16) 2 – 16
01.25.xxx 2 – 25 (OZ 25) 2 – 25
01.32.xxx 3 – 32 (OZ 32) 3 – 32
d* Ø des Werkzeugs
Spannüberbrückung 0,5 mm (+0,1/−0,4)
d* Ø of the tool
Clamping range 0.5 mm (+0.1/−0.4)
d* Ø d‘outil
Plage de serrage de 0,5 mm (+0,1/−0,4)
Hinweis:
Note:
Observation:
Dicht bis 80 bar Druck
Sealing capacity up to 80 bar
Étanche jusqu’à la pression de 80
bar
