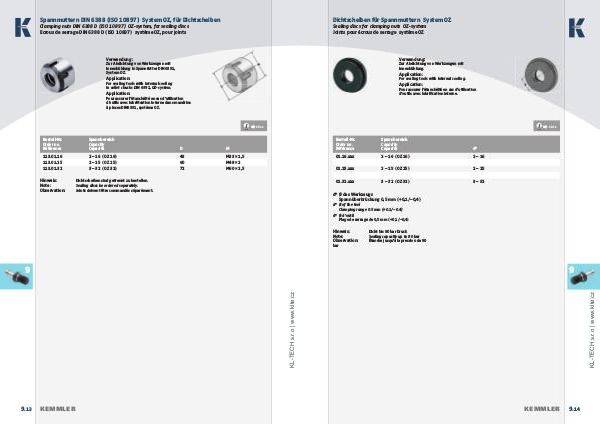

Spannmuttern DIN 6388 (ISO 10897) System OZ, für Dichtscheiben
Clamping nuts DIN 6388 D (ISO 10897) OZ-system, for sealing discs
Ecrous de serrage DIN 6388 D (ISO 10897) système OZ, pour joints
Verwendung:
Zur Abdichtung von Werkzeugen mit
Innenkühlung in Spannfutter DIN 6391,
System OZ.
Application:
For sealing tools with internal cooling
in collet chucks DIN 6391, OZ-system.
Application:
Pour assurer l’étanchéité en cas d’utilisation
d’outils avec lubrifi cation interne dans mandrins
à pinces DIN6391, système OZ.
13. 04
Bestell-Nr.
Order no.
Référence Spannbereich
Capacity
Capacité D M
113.01.16 2 – 16 (OZ 16) 43 M33 × 1,5
113.01.25 2 – 25 (OZ 25) 60 M48 × 2
113.01.32 3 – 32 (OZ 32) 72 M60 × 2,5
Hinweis:
Note:
Observation:
Dichtscheiben sind getrennt zu bestellen.
Sealing discs be ordered separately.
Joints doivent être commandés séparément.
