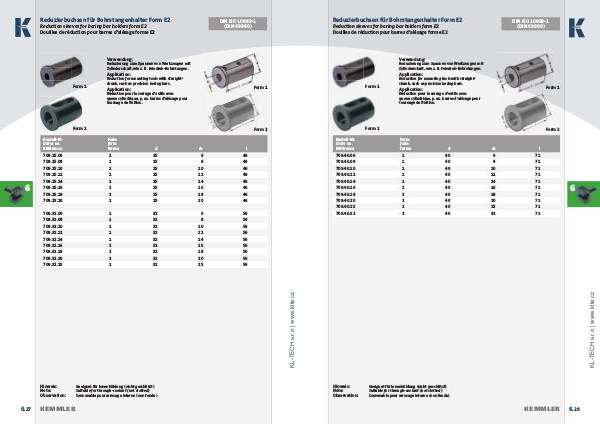

Reduzierbuchsen für Bohrstangenhalter Form E2
DIN ISO 10889-1
(DIN 69880)
Reduction sleeves for boring bar holders form E2
Douilles de réduction pour barres d’alésage forme E2
Verwendung:
Reduzierung zum Spannen von Werkzeugen mit
Zylinderschaft, wie z. B. Feindreh-Bohrstangen.
Application:
Form 1
Reduction for mounting tools with straight-
shank, such as precision boring bars.
Form 1
Application:
Réduction pour le serrage d‘outils avec
queue cylindrique, p. ex. barres d‘alésage pour
tournage de fi nition.
Form 2
Bestell-Nr.
Order no.
Référence
Form 2
Form
form
forme
d 1 l
1 40 6 71
709.40.08 1 40 8 71
709.40.10 1 40 10 71
709.40.12 1 40 12 71
709.40.14 1 40 14 71
709.40.16 2 40 16 71
709.40.18 2 40 18 71
709.40.20 2 40 20 71
709.40.25 2 40 25 71
709.40.32 2 40 32 71
6
www.klte.cz
d 709.40.06
Hinweis:
Note:
Observation:
Geeignet für Innenkühlung (nicht geschlitzt)
Suitable for through-coolant (not slotted)
Convenable pour arrosage interne (non fendu)
KEMMLER
6. 28
