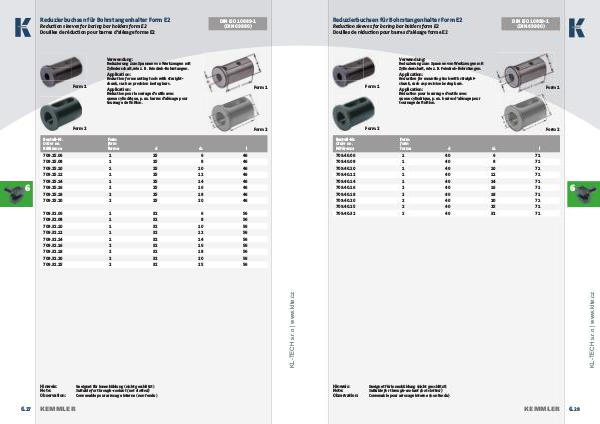

Reduzierbuchsen für Bohrstangenhalter Form E2
DIN ISO 10889-1
(DIN 69880)
Reduction sleeves for boring bar holders form E2
Douilles de réduction pour barres d’alésage forme E2
Verwendung:
Reduzierung zum Spannen von Werkzeugen mit
Zylinderschaft, wie z. B. Feindreh-Bohrstangen.
Application:
Form 1
Reduction for mounting tools with straight-
shank, such as precision boring bars.
Form 1
Application:
Réduction pour le serrage d‘outils avec
queue cylindrique, p. ex. barres d‘alésage pour
tournage de fi nition.
Form 2
Bestell-Nr.
Order no.
Référence
Form
form
forme
d d 1 l
709.25.06 1 25 6 46
709.25.08 1 25 8 46
709.25.10 1 25 10 46
709.25.12 1 25 12 46
709.25.14 1 25 14 46
709.25.16 2 25 16 46
709.25.18 2 25 18 46
709.25.20 2 25 20 46
709.32.06 1 32 6 56
709.32.08 1 32 8 56
709.32.10 1 32 10 56
709.32.12 1 32 12 56
709.32.14 1 32 14 56
709.32.16 2 32 16 56
709.32.18 2 32 18 56
709.32.20 2 32 20 56
709.32.25 2 32 25 56
www.klte.cz
6
Form 2
Hinweis:
Note:
Observation:
6. 27
KEMMLER
Geeignet für Innenkühlung (nicht geschlitzt)
Suitable for through-coolant (not slotted)
Convenable pour arrosage interne (non fendu)
