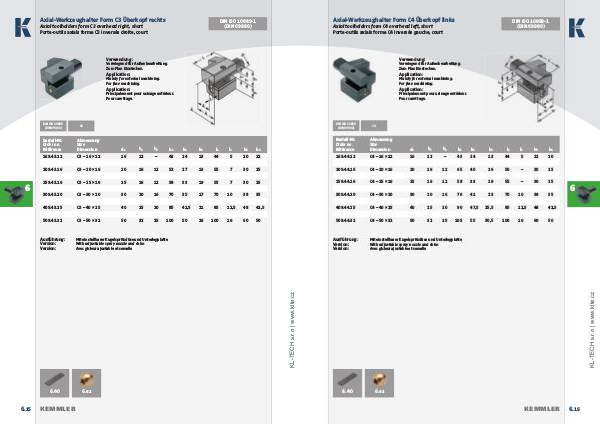

Axial-Werkzeughalter Form C3 Überkopf rechts
Axial toolholders form C3 overhead right, short Porte-outils axials forme C3 inversés droite, court
DIN ISO 10889-1( DIN 69880)
Verwendung: Vorwiegend für Außenbearbeitung. Zum Plan Einstechen.
Application: Mainly for external machining. For face machining.
Application: Principalement pour usinage extérieur. Pour carottage.
DIN ISO 10889( DIN 69880)
C3
Bestell-Nr. Order no. Référence
Abmessung |
|
|
|
|
|
|
|
|
|
|
Size |
|
|
|
|
|
|
|
|
|
|
Dimension |
d 1 |
h 1 |
h 2 |
b 1 |
b 2 |
b 3 |
l 1 |
l 2 |
h 5 |
h 6 |
169.43.12 C3 – 16 × 12 16 12 – 43 24 13 44 5 20 22
209.43.16 C3 – 20 × 16 20 16 12 52 27 13 55 7 30 25
6
259.43.16 C3 – 25 × 16 25 16 12 58 33 19 55 7 30 25
309.43.20 C3 – 30 × 20 30 20 16 70 35 17 70 10 38 35
409.43.25 C3 – 40 × 25 40 25 20 85 42,5 21 85 12,5 48 42,5
509.43.32 C3 – 50 × 32 50 32 25 100 50 26 100 16 60 50
Ausführung: Version: Version:
Mit einstellbarer Kugelspritzdüse und Unterlegplatte With adjustable spray nozzle and shim Avec gicleur ajustable et semelle
KL-TECH s. r. o | www. klte. cz
6.40 6.42
6.15
