5

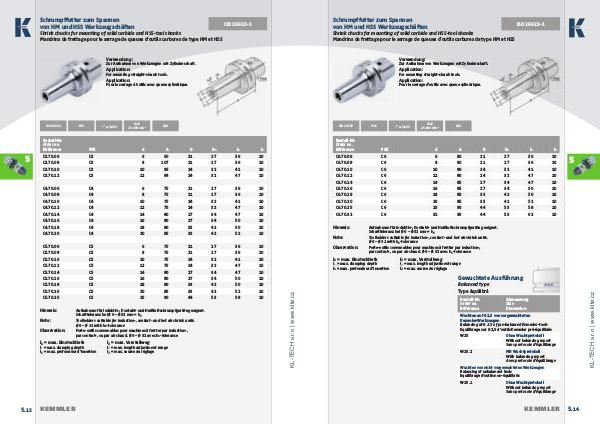

Schrumpffutter zum Spannen von HM und HSS Werkzeugschäften
Shrink chucks for mounting of solid carbide and HSS-tool shanks Mandrins de frettage pour le serrage de queues d‘ outils carbures de type HM et HSS
ISO 26623-1
Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft.
Application: For mounting straight-shank tools.
Application: Pour le serrage d’ outils avec queue cylindrique.
ISO 26623 PSK ��≤ 0,003
G2,5 25.000 min-1 CAD

5

Bestell-Nr. Order no. Référence
PSK
d
A
D
D 1
l 1
l 2
C3.70.06
C3
6
60
21
27
36
10
C3.70.08
C3
8
107
21
27
36
10
C3.70.10
C3
10
95
24
32
41
10
C3.70.12
C3
12
84
24
32
47
10
C4.70.06
C4
6
75
21
27
36
10
C4.70.08
C4
8
75
21
27
36
10
C4.70.10
C4
10
75
24
32
41
10
C4.70.12
C4
12
75
24
32
47
10
C4.70.14
C4
14
80
27
34
47
10
C4.70.16
C4
16
80
27
34
50
10
C4.70.18
C4
18
80
33
42
50
10
C4.70.20
C4
20
85
33
42
52
10
C5.70.06
C5
6
75
21
27
36
10
C5.70.08
C5
8
75
21
27
36
10
C5.70.10
C5
10
75
24
32
41
10
C5.70.12
C5
12
75
24
32
47
10
C5.70.14
C5
14
80
27
34
47
10
C5.70.16
C5
16
80
27
34
50
10
C5.70.18
C5
18
80
33
42
50
10
C5.70.20
C5
20
85
33
42
52
10
C5.70.25
C5
25
90
44
53
58
10
Hinweis: Aufnahmen für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet. Schafttoleranz bei Ø 6 – Ø 32 mm = h 6
Note: Toolholders suitable for induction-, contact- and hot air shrink units. Ø 6 – Ø 32 with h 6-tolerance
Observation: Porte-outils convenables pour machines à fretter par induction-, par contact-, ou par air chaud. Ø 6 – Ø 32 avec h 6-tolerance
l 1 = max. Einstecktiefe l 2 = max. Verstellweg l 1 = max. clamping depth l 2 = max. length adjustment range l 1 = max. profondeur d’ insertion l 2 = max. course de réglage
KL-TECH s. r. o | www. klte. cz
5.13
