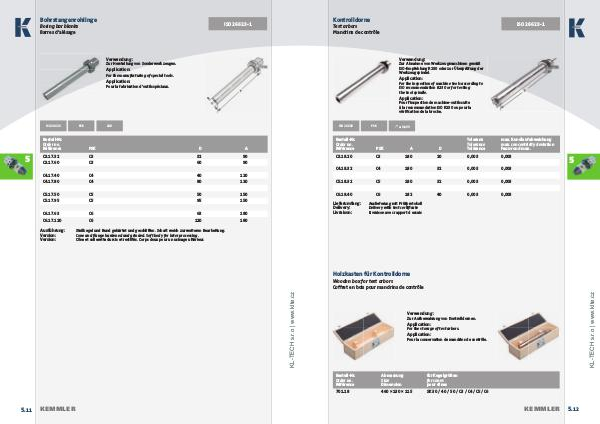

Kontrolldorne
ISO 26623-1
Test arbors
Mandrins de contrôle
Verwendung:
Zur Abnahme von Werkzeugmaschinen gemäß
ISO-Empfehlung R230 oder zur Überprüfung der
Werkzeugspindel.
Application :
For the inspection of machine tools according to
ISO recommendation R230 or for testing
the tool spindle.
Application:
Pour l‘inspection de machine-outils suite
à la recommandation ISO R230 ou pour la
vérifi cation de la broche.
ISO 26623
≤ 0,003
PSK
Bestell-Nr.
Order no.
Référence PSK
C3.18.20 Toleranz
Tolerance
Tolérance max. Rundlaufabweichung
max. concentricity deviation
Faux-rond max.
A D C3 180 20 0,003 0,003
C4.18.32 C4 180 32 0,003 0,003
C5.18.32 C5 180 32 0,003 0,003
C6.18.40 C6 182 40 0,003 0,003
Lieferumfang:
Delivery:
Livraison:
5
Auslieferung mit Prüfprotokoll
Delivery with test certifi cate
Livraison avec rapport d essais
Holzkasten für Kontrolldorne
www.klte.cz
Wooden box for test arbors
Coffret en bois pour mandrins de contrôle
Verwendung:
Zur Aufbewahrung von Kontrolldornen.
Application:
For the storage of test arbors.
Application:
Pour la conservation de mandrins de contrôle.
Bestell-Nr.
Order no.
Référence Abmessung
Size
Dimension für Kegelgrößen
for cones
pour cônes
701.18 460 × 130 × 115 SK 30 / 40 / 50 / C3 / C4 / C5/ C6
KEMMLER
5. 12
