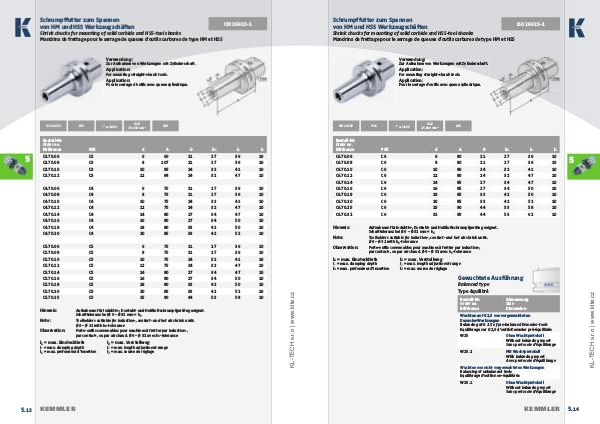

Schrumpffutter zum Spannen
von HM und HSS Werkzeugschäften
ISO 26623-1
Shrink chucks for mounting of solid carbide and HSS-tool shanks
Mandrins de frettage pour le serrage de queues d‘outils carbures de type HM et HSS
Verwendung:
Zur Aufnahme von Werkzeugen mit Zylinderschaft.
Application:
For mounting straight-shank tools.
Application:
Pour le serrage d’outils avec queue cylindrique.
≤ 0,003
PSK
G2,5
25.000 min -1
CAD
Bestell-Nr.
Order no.
Référence PSK d A D D 1 l 1 l 2
C6.70.06 C6 6 80 21 27 36 10
C6.70.08 C6 8 80 21 27 36 10
C6.70.10 C6 10 80 24 32 41 10
C6.70.12 C6 12 80 24 32 47 10
C6.70.14 C6 14 85 27 34 47 10
C6.70.16 C6 16 85 27 34 50 10
C6.70.18 C6 18 85 33 42 50 10
C6.70.20 C6 20 85 33 42 52 10
C6.70.25 C6 25 90 44 53 58 10
C6.70.32 C6 32 95 44 53 62 10
Hinweis:
Note:
Observation:
5
Aufnahmen für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet.
Schafttoleranz bei Ø 6 – Ø 32 mm = h 6
Toolholders suitable for induction-, contact- and hot air shrink units.
Ø 6 – Ø 32 with h 6 -tolerance
Porte-outils convenables pour machines à fretter par induction-,
par contact-, ou par air chaud. Ø 6 – Ø 32 avec h 6 -tolerance
l 1 = max. Einstecktiefe l 2 = max. Verstellweg
l 1 = max. clamping depth
l 1 = max. profondeur d’insertion l 2 = max. length adjustment range
l 2 = max. course de réglage
Gewuchtete Ausführung
Balanced type
Type équilibré
Bestell-Nr.
Order no.
Référence
www.klte.cz
ISO 26623
Abmessung
Size
Dimension
Wuchten auf G 2,5 von vorgewuchteten
Kemmler-Werkzeugen
Balancing at G 2.5 of pre-balanced Kemmler-tools
Equilibrage sur G 2,5 d‘outils Kemmler pré-équilibrés
W25
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
W25.2
Mit Wuchtprotokoll
With balancing report
Avec protocole d‘équilibrage
Wuchten von nicht vorgewuchteten Werkzeugen
Balancing of unbalanced tools
Equilibrage d‘outils non-équilibrés
W25.1
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
KEMMLER
5. 14
