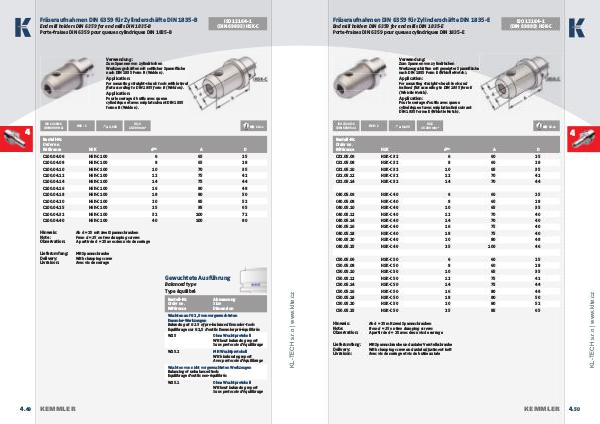

Fräseraufnahmen DIN 6359 für Zylinderschäfte DIN 1835-B
ISO 12164-1
(DIN 69893) HSK-C
End mill holders DIN 6359 for end mills DIN 1835-B
Porte-fraises DIN 6359 pour queues cylindriques DIN 1835-B
Verwendung:
Zum Spannen von zylindrischen
Werkzeugschäften mit seitlicher Spannfl äche
nach DIN 1835 Form B (Weldon).
Application:
For mounting straight-shank tools with lateral
fl at according to DIN 1835 form B (Weldon).
Application:
Pour le serrage d’outils avec queue
cylindrique et avec méplat suivant DIN 1835
forme B (Weldon).
4
ISO 12164-1
(DIN 69893-1)
≤ 0,003
HSK - C
Bestell-Nr.
Order no.
Référence HSK
C100.04.06 C100.04.08
G6,3
15.000 min -1
13. 04
d H4 A D
HSK-C 100 6 65 25
HSK-C 100 8 65 28
C100.04.10 HSK-C 100 10 70 35
C100.04.12 HSK-C 100 12 75 42
C100.04.14 HSK-C 100 14 75 44
C100.04.16 HSK-C 100 16 80 48
C100.04.18 HSK-C 100 18 80 50
C100.04.20 HSK-C 100 20 85 52
C100.04.25 HSK-C 100 25 95 65
C100.04.32 HSK-C 100 32 100 72
C100.04.40 HSK-C 100 40 100 80
Hinweis:
Note:
Observation: Ab d = 25 mit zwei Spannschrauben
From d = 25 on two clamping screws
A partir de d = 25 avec deux vis de serrage
Lieferumfang:
Delivery:
Livraison: Mit Spannschraube
With clamping screw
Avec vis de serrage
Balanced type
Type équilibré
Bestell-Nr.
Order no.
Référence
Abmessung
Size
Dimension
Wuchten auf G 2,5 von vorgewuchteten
Kemmler-Werkzeugen
Balancing at G 2.5 of pre-balanced Kemmler-tools
Equilibrage sur G 2,5 d‘outils Kemmler pré-équilibrés
W25
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
W25.2
Mit Wuchtprotokoll
With balancing report
Avec protocole d‘équilibrage
Wuchten von nicht vorgewuchteten Werkzeugen
Balancing of unbalanced tools
Equilibrage d‘outils non-équilibrés
W25.1
4. 49
KEMMLER
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
www.klte.cz
Gewuchtete Ausführung
