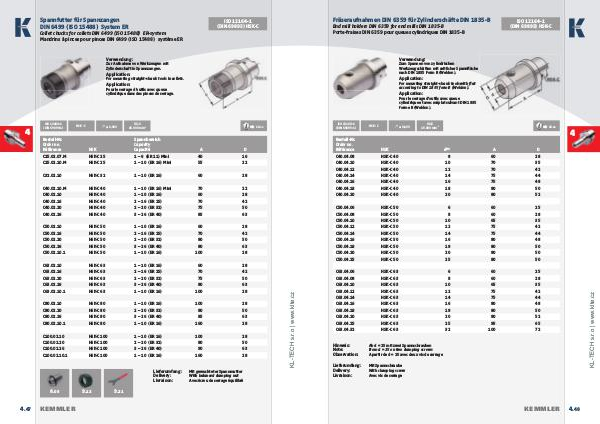

Fräseraufnahmen DIN 6359 für Zylinderschäfte DIN 1835-B
ISO 12164-1
(DIN 69893) HSK-C
End mill holders DIN 6359 for end mills DIN 1835-B
Porte-fraises DIN 6359 pour queues cylindriques DIN 1835-B
Verwendung:
Zum Spannen von zylindrischen
Werkzeugschäften mit seitlicher Spannfl äche
nach DIN 1835 Form B (Weldon).
Application:
For mounting straight-shank tools with fl at
according to DIN 1835 form B (Weldon).
Application:
Pour le serrage d’outils avec queue
cylindrique et avec méplat suivant DIN 1835
forme B (Weldon).
≤ 0,003
HSK - C
Bestell-Nr.
Order no.
Référence HSK
C40.04.08 C40.04.10
G6,3
15.000 min -1
13. 04
d H4 A D
HSK-C 40 8 60 28
HSK-C 40 10 70 35
C40.04.12 HSK-C 40 12 70 42
C40.04.14 HSK-C 40 14 75 44
C40.04.16 HSK-C 40 16 75 48
C40.04.18 HSK-C 40 18 80 50
C40.04.20 HSK-C 40 20 80 52
C50.04.06 HSK-C 50 6 60 25
C50.04.08 HSK-C 50 8 60 28
C50.04.10 HSK-C 50 10 65 35
C50.04.12 HSK-C 50 12 75 42
C50.04.14 HSK-C 50 14 75 44
C50.04.16 HSK-C 50 16 80 48
C50.04.18 HSK-C 50 18 80 50
C50.04.20 HSK-C 50 20 80 50
C50.04.25 HSK-C 50 25 80 50
C63.04.06 HSK-C 63 6 60 25
C63.04.08 HSK-C 63 8 60 28
C63.04.10 HSK-C 63 10 65 35
C63.04.12 HSK-C 63 12 75 42
C63.04.14 HSK-C 63 14 75 44
C63.04.16 HSK-C 63 16 80 48
C63.04.18 HSK-C 63 18 80 50
C63.04.20 HSK-C 63 20 80 52
C63.04.25 HSK-C 63 25 95 65
C63.04.32 HSK-C 63 32 100 72
Hinweis:
Note:
Observation: Ab d = 25 mit zwei Spannschrauben
From d = 25 on two clamping screws
A partir de d = 25 avec deux vis de serrage
Lieferumfang:
Delivery:
Livraison: Mit Spannschraube
With clamping screw
Avec vis de serrage
KEMMLER
4
www.klte.cz
ISO 12164-1
(DIN 69893-1)
4. 48
