4

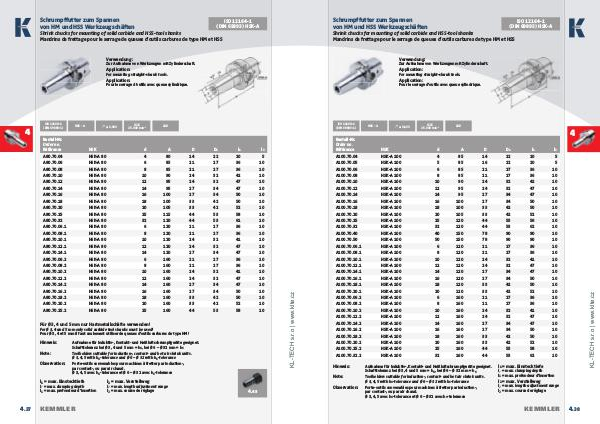

Schrumpffutter zum Spannen
ISO 12164-1 von HM und HSS Werkzeugschäften
( DIN 69893) HSK-A
Shrink chucks for mounting of solid carbide and HSS-tool shanks Mandrins de frettage pour le serrage de queues d‘ outils carbures de type HM et HSS
Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft.
Application: For mounting straight-shank tools.
Application: Pour le serrage d’ outils avec queue cylindrique.

4

ISO 12164-1( DIN 69893-1)
HSK- A ��≤ 0,003
G2,5 25.000 min-1 CAD
Bestell-Nr. Order no. Référence
HSK
d
A
D
D 1
l 1
l 2
A80.70.04
HSK-A 80
4
80
14
22
20
5
A80.70.06
HSK-A 80
6
85
21
27
36
10
A80.70.08
HSK-A 80
8
85
21
27
36
10
A80.70.10
HSK-A 80
10
90
24
32
42
10
A80.70.12
HSK-A 80
12
95
24
32
47
10
A80.70.14
HSK-A 80
14
95
27
34
47
10
A80.70.16
HSK-A 80
16
100
27
34
50
10
A80.70.18
HSK-A 80
18
100
33
42
50
10
A80.70.20
HSK-A 80
20
105
33
42
52
10
A80.70.25
HSK-A 80
25
115
44
53
58
10
A80.70.32
HSK-A 80
32
120
44
53
61
10
A80.70.06.1
HSK-A 80
6
120
21
27
36
10
A80.70.08.1
HSK-A 80
8
120
21
27
36
10
A80.70.10.1
HSK-A 80
10
120
24
32
41
10
A80.70.12.1
HSK-A 80
12
120
24
32
47
10
A80.70.14.1
HSK-A 80
14
120
27
34
47
10
A80.70.06.2
HSK-A 80
6
160
21
27
36
10
A80.70.08.2
HSK-A 80
8
160
21
27
36
10
A80.70.10.2
HSK-A 80
10
160
24
32
41
10
A80.70.12.2
HSK-A 80
12
160
24
32
47
10
A80.70.14.2
HSK-A 80
14
160
27
34
47
10
A80.70.16.2
HSK-A 80
16
160
27
34
50
10
A80.70.18.2
HSK-A 80
18
160
33
42
50
10
A80.70.20.2
HSK-A 80
20
160
33
42
52
10
A80.70.25.2
HSK-A 80
25
160
44
53
58
10
Für Ø 3, 4 und 5 mm nur Hartmetallschäfte verwenden! For Ø 3, 4 and 5 mm only solid carbide tool shanks must be used! Pour Ø 3, 4 et 5 mm il faut seulement utiliser de queues d‘ outils carbures de type HM!
Hinweis: Aufnahme für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet. Schafttoleranz bei Ø 3, 4 und 5 mm = h 4, bei Ø 6 – Ø 32 mm = h 6
Note: Toolholders suitable for induction-, contact- and hot air shrink units. Ø 3, 4, 5 with h 4-tolerance and Ø 6 – Ø 32 with h 6-tolerance
Observation: Porte-outils convenables pour machines à fretter par induction-, par contact-, ou par air chaud. Ø 3, 4, 5 avec h 4-tolerance et Ø 6 – Ø 32 avec h 6-tolerance
KL-TECH s. r. o | www. klte. cz l 1 = max. Einstecktiefe l 1 = max. clamping depth l 1 = max. profondeur d’ insertion l 2 = max. Verstellweg l 2 = max. length adjustment range l 2 = max. course de réglage
4.43
4.37
