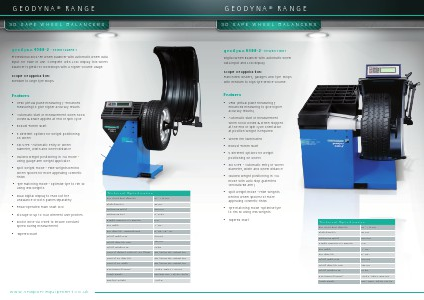

GEODYNA® RANGE
3D SAPE WHEEL BALANCERS
geodyna 6300-2 - EEWB511BB1
Digital Wheel Balancer with automatic wheel
data input and LCD display.
Scope of application:
Franchised dealers, garages and tyre shops
with medium to high tyre service volume.
Features
• VPM (virtual plane measuring)enhanced measuring to give higher
accuracy results)
• Automatic start of measurement
when hood closed & wheel stopped
at the end of spin cycle orientation
at position weight is required
• Wheel rim illuminated
• Robust 40mm shaft
• 5 different options for weight
positioning on wheel
• 3D SAPE - Automatic entry of wheel
diameter, width and wheel distance
• Guided weight positioning in Alu
mode with auto stop (patented
GeodataTM arm)
• Split weight mode - Hide weights
behind wheel spokes for more
appealing cosmetic finish
• Tyre matching mode -optimise tyre
to rim so using less weights
• Tapered shaft
Te c h n i c a l S p e c i f i c a t i o n
Rim centre bore diameter
43 - 116 mm
Shaft diameter
40 mm
Measuring speed
200 rpm
Display / Monitor TFT Monitor
LCD
Rim width
1 - 20"
Rim diameter
8 - 25"
Wheel width max.
530 mm
Wheel diameter max.
950 mm
Wheel weight max.
70 kg
Dimensions (HxWxD)
1375 x 1365 x 1200 mm
Power Supply
200 - 240V 1ph 50 / 60 Hz
