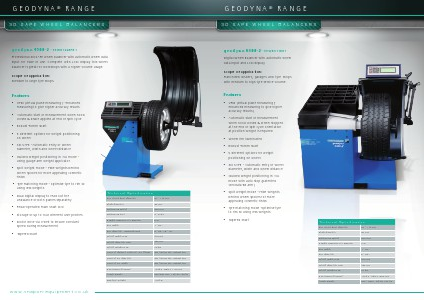

GEODYNA® RANGE
3D SAPE WHEEL BALANCERS
geodyna 4500-2 - EEWB722BPB1
Professional 3D SAPE wheel balancer with automatic wheel data
input for ease of use. Complete with LCD display this wheel
balancer is great for workshops with a higher volume usage.
Scope of application:
Medium to large tyre shops.
Features
• VPM (virtual plane measuring) - enhanced
measuring to give higher accuracy results
• Automatic start of measurement when hood
closed & brake applied at end of spin cycle
• Robust 40mm shaft
• 5 different options for weight positioning
on wheel
• 3D SAPE -Automatic entry of wheel
diameter, width and wheel distance
• Guided weight positioning in Alu mode using gauge arm weight applicator
• Split weight mode - Hide weights behind
wheel spokes for more appealing cosmetic
finish
• Tyre matching mode - optimise tyre to rim so
using less weights
• Dual digital display to read out the
unbalance of both planes separately
Te c h n i c a l S p e c i f i c a t i o n
Rim centre bore diameter
43 - 116 mm
Shaft diameter
40 mm
Measuring speed
200 rpm
• Storage of up to four different user profiles
Measuring time
6 - 8 sec
• Motor drive via V-belt to ensure constant
speed during measurement
Display / Monitor TFT Monitor
LCD
Rim width
1 - 20"
Rim diameter / Manual Input
8 - 25" / 8 - 30"
Wheel width max.
530 mm
Wheel diameter max.
950 mm
Wheel weight max.
70 kg
Input of distance machine / rim flange
semi-automatic / gauge arm
Input of rim diameter
semi-automatic / gauge arm
Input of rim width
semi-automatic / gauge arm
Dimensions (HxWxD)
1765 x 1285 x 1130 mm
Power Supply
200-240 VAC 1 ph 50 / 60Hz
Machine Weight
130 kg
• Pedal-operated main shaft lock
• Tapered shaft
w w w. s n a p o n - e q u i p m e n t . c o . u k
