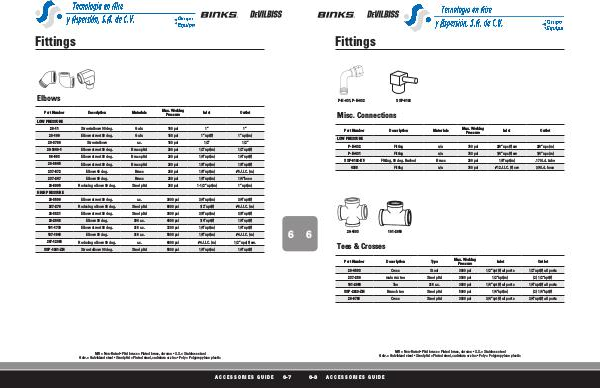

Fittings
Elbows
Part Number
Description Materials Max. Working
Pressure
Inlet
Outlet
LOW PRESSURE
20-11 Street elbow 90 deg. Galv. 150 psi 1” 1”
20-100 Elbow street 90 deg. Galv. 150 psi 1”npt(f) 1”npt(m)
20-3780 Street elbow s.s. 150 psi 1/2” 1/2”
20-3340-1 Elbow street 90 deg. Brass pltd 250 psi 1/2”npt(m) 1/2”npt(f)
86-563 Elbow street 90 deg. Brass pltd 250 psi 1/4”npt(m) 1/4”npt(f)
20-3645 Elbow street 90 deg. Brass pltd 250 psi 1/8”npt(m) 1/8”npt(f)
237-572 Elbow 45 deg. Brass 250 psi 1/8”npt(m) #5 J.I.C. (m)
237-247 Elbow 90 deg. Brass 250 psi 1/8”npt(m) 1/4”hose
20-6905 Reducing elbow 90 deg. Steel pltd 250 psi 1-1/2”npt(m) 1”npt(m)
20-3590 Elbow street 90 deg. s.s. 3000 psi 3/4”npt(m) 3/4”npt(f)
237-276 Reducing elbow 90 deg. Steel pltd 6000 psi 1/2”npt(f) #6 J.I.C. (m)
20-3821 Elbow street 90 deg. Steel pltd 3000 psi 3/8”npt(m) 3/8”npt(f)
1/4”npt(f)
HIGH PRESSURE
20-2848 Elbow 90 deg. 304 s.s. 4000 psi 1/4”npt(f) 101-1770 Elbow street 90 deg. 316 s.s. 7200 psi 1/4”npt(m) 1/4”npt(f)
107-1646 Elbow 90 deg. 316 s.s. 5000 psi 1/8”npt(m) #4 J.I.C. (m)
207-12085 Reducing elbow 90 deg. s.s. 6000 psi #4 J.I.C. (m) 1/2”nps(f) sw.
SSP-1941-ZN Street elbow 90 deg. Steel pltd 5000 psi 1/4”npt(m) 1/4”npt(f)
6
N/R = Non-Rated • Pltd brass = Plated brass, chrome • S.S. = Stainless steel
Galv. = Galvinized steel • Steel pltd = Plated steel, cadmium or zinc • Poly = Polypropylene plastic
