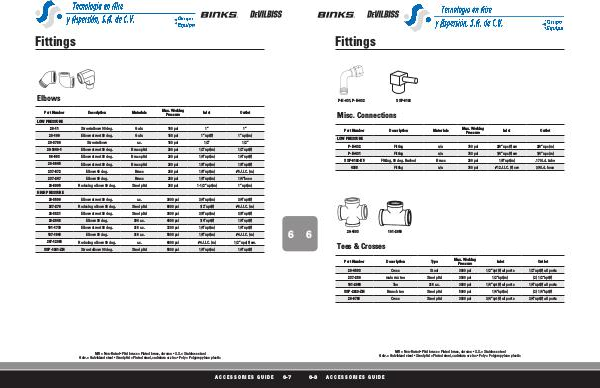

Guia de Accesorios Devilbiss & Binks Accesorios Devilbiss & Binks | Page 51

Fittings
P-H-431, P-H-432
SSP-6102
Misc. Connections
Description Materials Max. Working
Pressure Inlet Outlet
P-H-432 Fitting n/a 750 psi 3/8”nps(f) sw 3/8”nps(m)
P-H-431 Fitting n/a 750 psi 1/4”nps(f) sw 1/4”nps(m)
SSP-6102-K5 Fitting, 90 deg. Barbed Brass 250 psi 1/8”npt(m) .170 i.d. tube
4358 Fitting n/a 750 psi #12 J.I.C. (f) sw 3/4 i.d. hose
Part Number
LOW PRESSURE
6
20-4593
101-2050
Tees & Crosses
Part Number Description Type Max. Working
Pressure Inlet Outlet
20-4593 Cross Steel 3000 psi 1/2”npt(f) all ports 1/2”npt(f) all ports
237-280 male run tee Steel pltd 3000 psi 1/2”npt(m) (2) 1/2”npt(f)
101-2050 Tee 316 s.s. 3000 psi 1/4”npt(f) all ports 1/4”npt(f) all ports
SSP-2629-ZN Branch tee Steel pltd 5000 psi 1/4”npt(m) (2) 1/4”npt(f)
20-6788 Cross Steel pltd 3000 psi 3/4”npt(f) all ports 3/4”npt(f) all ports
N/R = Non-Rated • Pltd brass = Plated brass, chrome • S.S. = Stainless steel
Galv. = Galvinized steel • Steel pltd = Plated steel, cadmium or zinc • Poly = Polypropylene plastic
6-8
