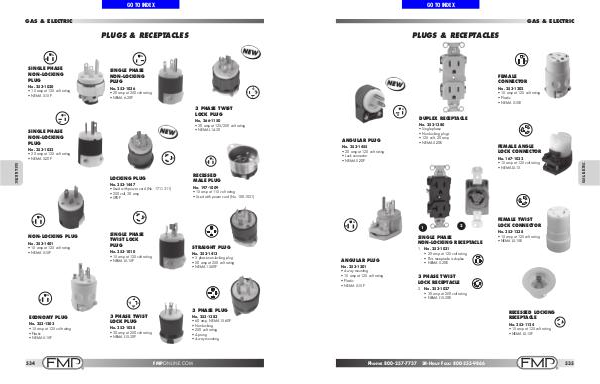

FMP-COMERSAMX CATALOGO FMP | Page 592

GAS & ELECTRIC
plugs & receptacles
G
W
G
Single Phase
Non-Locking
Plug
©2013 Franklin Machine Products
Single Phase
Non-Locking
Plug
©2013 Franklin Machine Products
No. 253-1030
• 15 amp at 125 volt rating
• NEMA 5-15P
No. 253-1036
• 20 amp at 250 volt rating
• NEMA 6-20P
X
Y
G
Z
3 PHASE TWIST
LOCK PLUG
G
©2013 Franklin Machine Products
No. 266-1150
• 30 amp at 125/250 volt rating
• NEMA L14-30
W
Single Phase
Non-Locking
Plug
©2013 Franklin Machine Products
No. 253-1032
• 20 amp at 125 volt rating
• NEMA 5-20P
w
G
G
W
LOCKING PLUG
Recessed
Male Plug
©2013 Franklin Machine Products
©2013 Franklin Machine Products
No. 253-1447
• Used with power cord (No. 171-1311)
• 250 volt, 30 amp
• SPDP
No. 197-1009
• 15 amp at 115 volt rating
• Used with power cord (No. 180-1021)
w
W
G
G
G
NON-LOCKING PLUG
No. 253-1401
• 15 amp at 125 volt rating
• NEMA 5-15P
©2013 Franklin Machine Products
Single Phase
Twist Lock
Plug
Y
X
Z
©2013 Franklin Machine Products
No. 253-1010
• 15 amp at 125 volt rating
• NEMA L5-15P
STRAIGHT PLUG
No. 253-1413
• 3 phase non-locking plug
• 50 amp at 250 volt rating
• NEMA 15-50P
©2013 Franklin Machine Products
G
W
Y
G
Y
©2013 Franklin Machine Products
No. 253-1203
• 15 amp at 125 volt rating
• Plastic
• NEMA 5-15P
534
X
G
Z
Economy Plug
Z
X
3 Phase Twist
Lock Plug
©2013 Franklin Machine Products
No. 253-1028
• 30 amp at 250 volt rating
• NEMA L15-30P
3 PHASE PLUG
©2013 Franklin Machine Products
No. 253-1383
• 60 amp, NEMA 15-60P
• Non-locking
• 250 volt rating
• 4-prong
• 4-way mounting
fmponline.com
