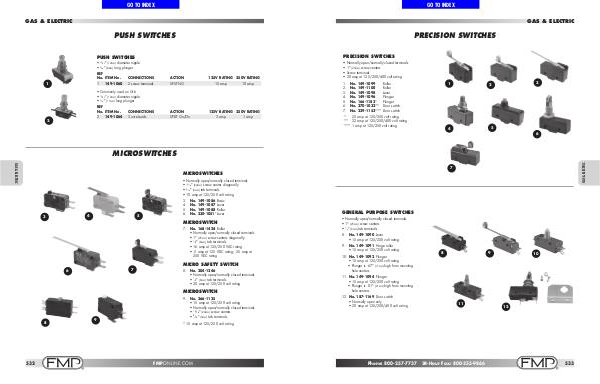

FMP-COMERSAMX CATALOGO FMP | Page 591

GAS & ELECTRIC
precision switches
Precision Switches
•
•
•
•
Normally open/normally closed terminals
1" (25mm) screw centers
Screw terminals
20 amp at 125/250/480 volt rating
1. No.
2. No.
3. No.
4. No.
5. No.
6. No.
7. No.
149-1099
Roller
149-1100
Roller
149-1098
Lever
149-1096
Plunger
166-1182* Plunger
270-1032** Door switch
229-1153*** Door switch
1
* 25 amp at 125/250 volt rating
** 22 amp at 125/250/480 volt rating
*** 1 amp at 125/250 volt rating
3
2
5
4
6
7
General Purpose Switches
• Normally open/normally closed terminals
• 1" (25mm) screw centers
• 1 ⁄ 4 " (6mm) tab terminals
8. No. 149-1090 Lever
• 15 amp at 125/250 volt rating
9. No. 149-1091 Hinge roller
• 15 amp at 125/250 volt rating
10. No. 149-1092 Plunger
• 15 amp at 125/250 volt rating
• Plunger is .67" (17mm) high from mounting
hole centers
8
9
10
11. No. 149-1094 Plunger
• 15 amp at 125/250 volt rating
• Plunger is .81" (21mm) high from mounting
hole centers
12. No. 187-1169 Door switch
• Normally open only
• 20 amp at 125/250/480 volt rating
