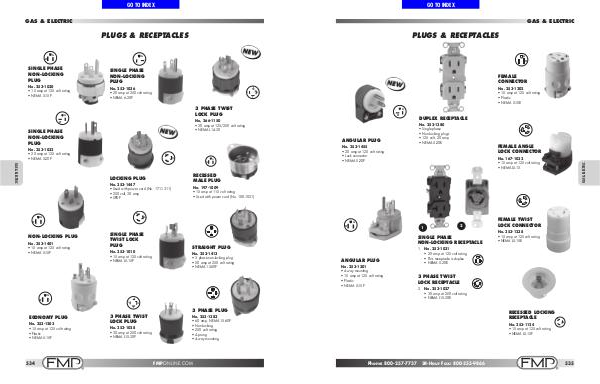

FMP-COMERSAMX CATALOGO FMP | Page 593
GAS & ELECTRIC
plugs & receptacles
G
W
Female
Connector
©2013 Franklin Machine Products
No. 253-1202
• 15 amp at 125 volt rating
• Plastic
• NEMA 5-15R
G
©2013 Franklin Machine Products
ANGULAR PLUG
No. 253-1455
• 20 amp at 125 volt rating
• Lock connector
• NEMA 5-20P
Duplex Receptacle
No. 253-1380
• Single phase
• Non-locking plugs
• 125 volt, 20 amp
• NEMA 5-20R
w
G
FEMALE ANGLE
Lock CONNECTOR
©2013 Franklin Machine Products
No. 167-1032
• 15 amp at 125 volt rating
• NEMA L5-15
W
w
G
W
G
1
Female Twist
Lock Connector
2
©2013 Franklin Machine Products
Single Phase
Non-Locking Receptacle
©2013 Franklin Machine Products
Angular Plug
No. 253-1201
• 4-way mounting
• 15 amp at 125 volt rating
• Plastic
• NEMA 5-15P
1. No. 253-1031
• 20 amp at 125 volt rating
• This receptacle is duplex
• NEMA 5-20R
3 Phase Twist
Lock Receptacle
2. No. 253-1027
• 30 amp at 250 volt rating
• NEMA L15-30R
No. 253-1238
• 15 amp at 125 volt rating
• NEMA L5-15R
G
W
©2013 Franklin Machine Products
X
G
Y
Z
©2013 Franklin Machine Products
Recessed Locking
Receptacle
No. 253-1124
• 15 amp at 125 volt rating
• NEMA L5-15P
w
G
©2013 Franklin Machine Products
Phone: 800-257-7737
24-Hour Fax: 800-255-9866
535
