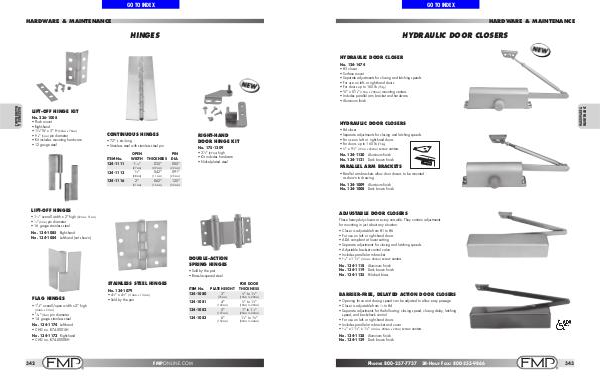

FMP-COMERSAMX CATALOGO FMP | Page 400

Hardware & Maintenance
hinges
LIFT-OFF HINGE Kit
No. 236-1008
• Flush mount
• Right-hand
• 1 1 ⁄ 4 " W x 3" H (32mm x 76mm)
• 3 ⁄ 16 " (5mm) pin diameter
• Kit includes mounting hardware
• 12 gauge steel
Continuous Hinges
RIGHT-HAND
DOOR HINGE KIT
• 72" (1.8M) long
• Stainless steel with stainless steel pin
ITEM No.
134-1111 OPEN
WIDTH
1 1 ⁄ 16 " THICKNESS
.035"
134-1113 1 1 ⁄ 2 " .042"
134-1116
(27mm)
(0.9mm) (2.2mm)
(38mm) (1.1mm) (2.3mm)
(51mm) (1.6mm) (3.2mm)
2"
.062"
No. 175-1209
• 3 1 ⁄ 2 " (89mm) high
• Kit includes hardware
• Nickel-plated steel
PIN
DIA.
.085"
.091"
.125"
Lift-Off Hinges
• 1 1 ⁄ 4 " overall width x 2" high
• 1 ⁄ 8 " (3mm) pin diameter
• 16 gauge stainless steel
(32mm x 51mm)
No. 134-1085 Right-hand
No. 134-1084 Left-hand (not shown)
Double-Action
Spring Hinges
• Sold by the pair
• Brass-lacquered steel
Stainless Steel Hinges
FLAG HINGES
• 1 ⁄ 4 " overall/open width x 2" high
3
(44mm x 51mm)
• 3 ⁄ 16 " (5mm) pin diameter
• 14 gauge stainless steel
No. 134-1079
• 4 1 ⁄ 2 " x 4 1 ⁄ 2 " (114mm x 114mm)
• Sold by the pair
ITEM No.
134-1080 PLATE HEIGHT
3"
134-1081 4"
134-1082
134-1083
No. 134-1174 Left-hand
• CHG no. R74-8001LH
No. 134-1173 Right-hand
• CHG no. R74-8000RH
342
fmponline.com
(76mm)
(102mm)
5"
(127mm)
6"
(152mm)
FOR DOOR
THICKNESS
3
⁄ 4 " to 1 1 ⁄ 8 "
(19mm to 29mm)
3
⁄ 4 " to 1 1 ⁄ 8 "
(19mm to 29mm)
1" to 1 1 ⁄ 4 "
(25mm to 32mm)
1 1 ⁄ 4 " to 1 3 ⁄ 4 "
(32mm to 44mm)
