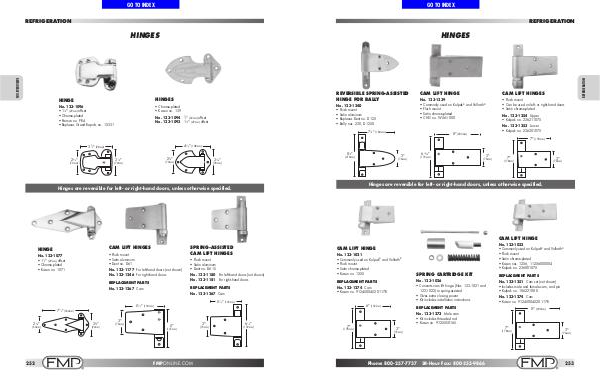

FMP-COMERSAMX CATALOGO FMP | Page 310

REFRIGERATION
HINGES
Hinge Hinges
No. 123-1096
• 1 1 ⁄ 8 " (29mm) offset
• Chrome-plated
• Premco no. PR4
• Replaces Grand Rapids no. 15331 • Chrome-plated
• Kason no. 139
3 7 ⁄ 8 "
No. 123-1094 7 ⁄ 8 " (22mm) offset
No. 123-1093 1 1 ⁄ 8 " (29mm) offset
4 1 ⁄ 4 "
(98mm)
2 3 ⁄ 4 "
(70mm)
(108mm)
2 3 ⁄ 4 "
(70mm)
3 1 ⁄ 8 "
(79mm)
3 1 ⁄ 16 "
(78mm)
Hinges are reversible for left- or right-hand doors, unless otherwise specified.
Spring-Assisted
Cam Lift Hinges
Cam Lift Hinges
Hinge
• Flush mount
• Satin aluminum
• Dent no. D61
No. 123-1077
• 1 1 ⁄ 8 " (29mm) offset
• Chrome-plated
• Kason no. 1071
No. 123-1177 For left-hand doors (not shown)
No. 123-1246 For right-hand doors
Replacement Parts
• Flush mount
• Satin aluminum
• Dent no. D61S
No. 123-1180 For left-hand doors (not shown)
No. 123-1181 For right-hand doors
Replacement Parts
No. 123-1267 Cam
No. 123-1267 Cam
7 1 ⁄ 4 "
2 3 ⁄ 8 "
(60mm)
252
5 1 ⁄ 8 "
5 1 ⁄ 8 "
(130mm)
(130mm)
(184mm)
3 5 ⁄ 8 "
(92mm)
3"
(76mm)
5"
(127mm)
fmponline.com
3"
(76mm)
6 1 ⁄ 4 "
(159mm)
