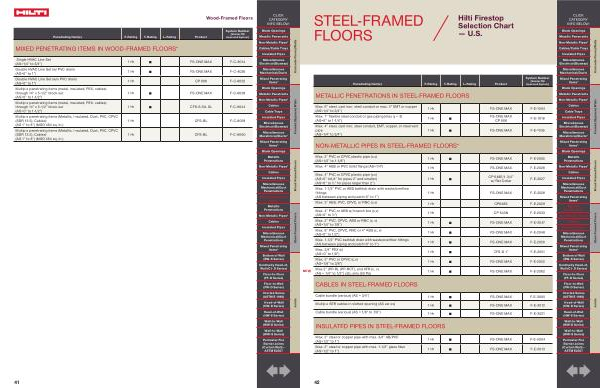

Firestop Selection Chart | страница 42

Penetrating Item ( s ) F-Rating T-Rating L-Rating Product

MIXED PENETRATING ITEMS IN WOOD-FRAMED FLOORS *

Single HVAC Line Set ( AS = 1 / 4 ” to 3 / 4 ”)

Double HVAC Line Set ( w / PVC drain ) ( AS = 0 ” to 1 ”)

Double HVAC Line Set ( w / o PVC drain ) ( AS = 0 ” to 1 ”)

Multiple penetrating items ( metal , insulated , PEX , cables ) through 14 ” x 5-1 / 2 ” block out ( AS = 0 ” to 1-1 / 2 ”)

Multiple penetrating items ( Metallic , Insulated , Duct , PVC , CPVC ( SDR 13.5 ), Cables ) ( AS 1 ” to 8 ”) ( MSO 464 sq . In .)

Wood-Framed Floors

System Number [ Similar FM Approved System ]

1 Hr ◼ FS-ONE MAX F-C-8014

1 Hr ◼ FS-ONE MAX F-C-8026

1 Hr CP 606 F-C-8032

1 Hr ◼ FS-ONE MAX F-C-8038

1 Hr ◼ CFS-S SIL SL F-C-8044

1 Hr CFS-BL F-C-8059

1 Hr CFS-BL F-C-8060
