NEW

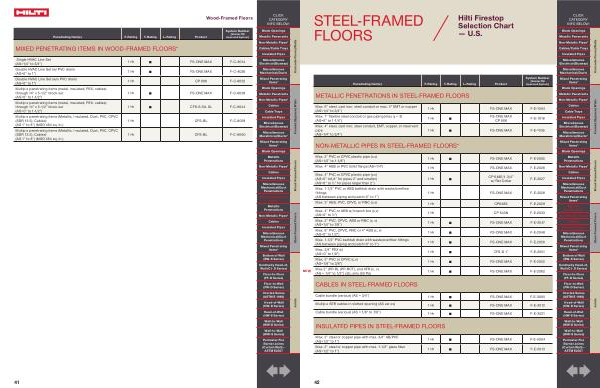

STEEL-FRAMED FLOORS
Penetrating Item ( s ) F-Rating T-Rating L-Rating Product
METALLIC PENETRATIONS IN STEEL-FRAMED FLOORS
Max . 6 ” steel , cast iron , steel conduit or max . 4 ” EMT or copper ( AS = 1 / 4 ” to 3 / 4 ”)
Max . 1 ” flexible steel conduit or gas piping ( max q = 3 ) ( AS = 0 ” to 1-1 / 4 ”)
Max . 4 ” steel , cast iron , steel conduit , EMT , copper , or steel vent pipe ( AS = 1 / 4 ” to 3 / 4 ”)
Steel-Framed Floors
System Number [ Similar FM Approved System ]
1 Hr FS-ONE MAX F-E-1004
1 Hr ◼
NON-METALLIC PIPES IN STEEL-FRAMED FLOORS *
Max . 2 ” PVC or CPVC plastic pipe ( c , v ) ( AS = 1 / 2 ” to 1-1 / 8 ”)
Max . 4 ” ABS or PVC toilet flange ( AS = 1 / 4 ”)
Max . 4 ” PVC or CPVC plastic pipe ( c , v ) ( AS = 0 ” to1 / 4 ” for pipes 2 ” and smaller ) ( AS = 0 ” to ½ ” for pipes larger than 2 ”)
Max . 1-1 / 2 ” PVC or ABS bathtub drain with waste / overflow fittings ( AS between piping and patch = 0 ” to 1 ”)
Max . 3 ” ABS , PVC , CPVC , or RNC ( c , v )
Max . 4 ” PVC or ABS w / branch line ( c , v ) ( AS = 0 ” to ½ ”)
Max . 2 ” PVC , CPVC , ABS or RNC ( c , v ) ( AS = 1 / 4 ” to 7 / 8 ”)
Max . 6 ” PVC , CPVC , RNC or 4 ” ABS ( c , v ) ( AS = 0 ” to 1 / 2 ”)
Max . 1-1 / 2 ” PVC bathtub drain with waste / overflow fittings ( AS between piping and patch = 0 ” to 1 ”)
Max . 3 / 4 ” PEX ( c ) ( AS = 0 ” to 1 / 8 ”)
Max . 3 ” PVC or CPVC ( c , v ) ( AS = 1 / 8 ” to 3 / 8 ”)
Max 2 ” ( PP-R ), ( PP-RCT ), and XFR ( c , v ) ( AS = 1 / 4 ” to 1 / 2 ”) cUL only ( 50 Pa )
CABLES IN STEEL-FRAMED FLOORS
Cable bundle ( various ) ( AS = 3 / 4 ”) Multiple SER cables in slotted opening ( AS varies ) Cable bundle ( various ) ( AS = 1 / 8 ” to 7 / 8 ”)
FS-ONE MAX CP 606
F-E-1018
1 Hr ◼ FS-ONE MAX F-E-1035
1 Hr ◼ FS-ONE MAX F-E-2005
1 Hr FS-ONE MAX F-E-2026
1 Hr ◼
INSULATED PIPES IN STEEL-FRAMED FLOORS
Max . 2 ” steel or copper pipe with max . 3 / 4 ” AB / PVC ( AS = 1 / 2 ” to 1 ”)
Max . 2 ” steel or copper pipe with max . 1-1 / 2 ” glass fiber ( AS = 1 / 2 ” to 1 ”)
Hilti Firestop Selection Chart — U . S .
CP 648E / 1-3 / 4 ” w / Ret Collar
F-E-2027
1 Hr FS-ONE MAX F-E-2028
1 Hr CP648S F-E-2029
1 Hr CP 643N F-E-2033
1 Hr ◼ FS-ONE MAX F-E-2047
1 Hr ◼ FS-ONE MAX F-E-2048
1 Hr ◼ FS-ONE MAX F-E-2050
1 Hr ◼ CFS-D 1 ” F-E-2051
1 Hr ◼ FS-ONE MAX F-E-2052
1 Hr ◼ FS-ONE MAX F-E-2062
1 Hr ◼ FS-ONE MAX F-E-3005 1 Hr ◼ FS-ONE MAX F-E-3012 1 Hr ◼ FS-ONE MAX F-E-3021
1 Hr ◼ FS-ONE MAX F-E-5004
1 Hr ◼ FS-ONE MAX F-E-5013
CLICK CATEGORY INFO BELOW :
Blank Openings Metallic Penetrants Non-Metallic Pipes * Cables / Cable Trays Insulated Pipes
Miscellaneous Electrical ( Busway )
Miscellaneous Mechanical / Ducts
Mixed Penetrating Items *
Blank Openings Metallic Penetrants Non-Metallic Pipes * Cables Cable Trays Insulated Pipes
Miscellaneus Electrical ( Busway )
Miscellaneous Mecahnical / Ducts *
Mixed Penetrating Items *
Blank Openings
Metallic Penetrations
Non-Metallic Pipes * Cables Insulated Pipes
Miscellaneous Mechanical / Duct Penetrations
Mixed Penetrating Items *
Metallic Penetrations
Non-Metallic Pipes * Cables Insulated Pipes
Miscellaneous Mechanical / Duct Penetrations
Mixed Penetrating Items *
Bottom of Wall ( BW-S Series )
Continuity Head-of- Wall ( CJ-D Series )
Floor-to-Floor ( FF-D Series )
Floor-to-Wall ( FW-D Series )
Intertek Series ( ASTM E 1966 )
Head-of-Wall ( HW-D Series )
Head-of-Wall ( HW-S Series )
Wall-to-Wall ( WW-D Series )
Wall-to-Wall ( WW-S Series )
Perimeter Fire Barrier Joints ( Curtain Wall ) – ASTM E2307
Joints Steel-Framed Floors Wood-Framed Floors Framed ( Gypsum ) Walls Concrete Floors / Walls 42
