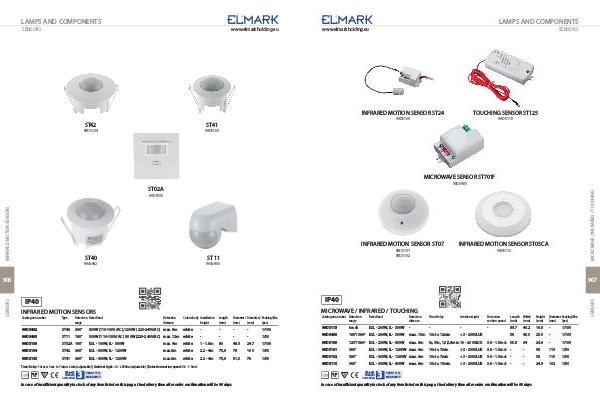

ELMARK Lighting 2019 Lighting_2019 | Page 507

LAMPS AND COMPONENTS
www.elmarkholding.eu
SENSORS
INFRARED MOTION SENSOR ST24 TOUCHING SENSOR ST125
99DS109 99DS115
MICROWAVE SENSOR ST701F
INFRARED MOTION SENSOR ST07 INFRARED MOTION SENSOR ST05CA
99DS101
99DS102 99DS110
99DS400
IP40
MICROWAVE / INFRARED / TOUCHING
Catalogue number Detection
range Rated load Detection
distance Time-Delay Ambient Light Detection
motion speed Length
(mm) Width
(mm) Height
(mm) Diameter Packing/Box
(mm)
(pcs)
99DS115 touch ESL - 200W, IL - 500W - - - - 89.7 40.2 16.8 -
1/100
99DS400 180°/360º ESL - 200W, IL - 500W max. 15m 10s to 12min 58 40.5 25.5 -
1/100
99DS109 120°/360º ESL - 200W, IL - 800W max. 6m 99DS101 360° 99DS102 360° 99DS110 360°
50/60
Hz
<3 - 2000LUX
5s, 30s, 1,3,5,8min 10 - 2000LUX 0.6 - 1.5m/s 55.8 34 24.6 - 1/100
ESL - 300W, IL - 1200W max. 6m 10s to 7min <3 - 2000LUX 0.6 - 1.5m/s - - 58 115 1/50
ESL - 300W, IL - 1200W max. 6m 10s to 7min <3 - 2000LUX 0.6 - 1.5m/s - - 58 115 1/50
ESL - 300W, IL - 800W 10s to 15min <3 - 2000LUX 0.6 - 1.5m/s - - 24.9 102 1/50
3+0
standard
+extended
3
max. 6m
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
907
