LAMPS AND COMPONENTS
ACCESSORIES
www.elmarkholding.eu

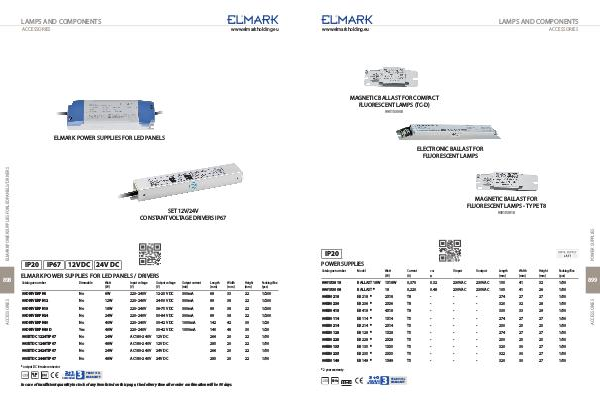

ELMARK POWER SUPPLIES FOR LED PANELS
898
SET 12V/24V
CONSTANT VOLTAGE DRIVERS IP67
IP20
IP67 12V DC 24V DC
ELMARK POWER SUPPLIES FOR LED PANELS / DRIVERS
Catalogue number Dimmable Watt
(W) Input voltage
(V) Output voltage
(V) Output current
(mA) Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
99DRIVERPN6 No 6W 220-240V 12-25V DC 300mA 68 33 22 1/200
99DRIVERPN12 No 12W 220-240V 24-50V DC 300mA 89 38 22 1/200
99DRIVERPN18 No 18W 220-240V 36-75V DC 300mA 89 38 22 1/200
99DRIVERPN24 No 24W 220-240V 50-84V DC 300mA 89 38 22 1/200
99DRIVERPN40 No 40W 220-240V 30-42V DC 1000mA 142 42 30 1/20
99DRIVERPN48D Yes 48W 220-240V 30-42V DC 1050mA 140 48 30 1/20
99SETDC1224TIP67 No 24W AC180-240V 12V DC 266 20 22 1/50
99SETDC1248TIP67 No 48W AC180-240V 12V DC 285 20 22 1/50
99SETDC2424TIP67 No 24W AC180-240V 24V DC 266 20 22 1/50
99SETDC2448TIP67 No 48W AC180-240V 24V DC 285 20 22 1/50
* output DC female connector
50/60
Hz
2+1
standard
+extended
3
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
