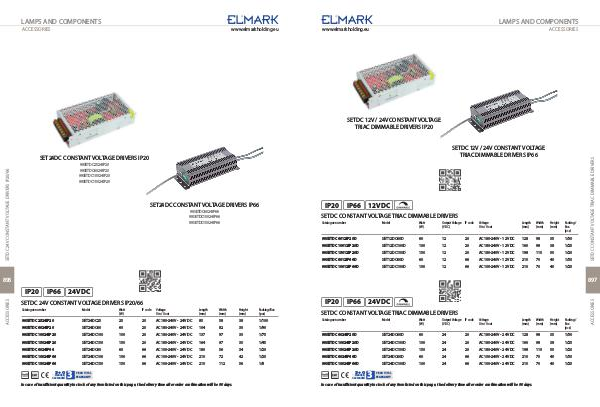

ELMARK Lighting 2019 Lighting_2019 | Page 497

LAMPS AND COMPONENTS
www.elmarkholding.eu
ACCESSORIES
SETDC 12V / 24V CONSTANT VOLTAGE
TRIAC DIMMABLE DRIVERS IP66
IP20
IP66 12V DC
SETDC CONSTANT VOLTAGE TRIAC DIMMABLE DRIVERS
Catalogue number Model Watt
(W) Output Voltage IP code
(V DC) Voltage
Uin / Uout Length
(mm) Width
(mm) Height
(mm) Packing/
Box
(pcs)
99SETDC6012IP20D SET12DC60D 60 12 20 AC180-240V - 12V DC 128 98 35 1/30
99SETDC10012IP20D SET12DC100D 100 12 20 AC180-240V - 12V DC 160 98 38 1/25
99SETDC15012IP20D SET12DC150D 150 12 20 AC180-240V - 12V DC 198 110 50 1/20
99SETDC6012IP66D SET12DC60D 60 12 66 AC100-240V - 12V DC 210 70 40 1/30
99SETDC10012IP66D SET12DC100D 100 12 66 AC100-240V - 12V DC 210 70 40 1/25
SETDC 12V / 24V CONSTANT VOLTAGE
TRIAC DIMMABLE DRIVERS IP20
IP20
IP66 24V DC
SETDC CONSTANT VOLTAGE TRIAC DIMMABLE DRIVERS
Catalogue number Model Watt
(W) Output Voltage IP code
(V DC) Voltage
Uin / Uout Length
(mm) Width
(mm) Height
(mm) Packing/
Box
(pcs)
99SETDC6024IP20D SET24DC60D 60 24 20 AC180-240V - 24V DC 128 98 35 1/30
99SETDC10024IP20D SET24DC100D 100 24 20 AC180-240V - 24V DC 160 98 38 1/25
99SETDC15024IP20D SET24DC150D 150 24 20 AC180-240V - 24V DC 198 110 50 1/20
99SETDC6024IP66D SET24DC60D 60 24 66 AC100-240V - 24V DC 210 70 40 1/30
99SETDC10024IP66D SET24DC100D 100 24 66 AC100-240V - 24V DC 210 70 40 1/25
3+0
standard
+extended
3
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
