INDOOR
LUMINAIRES
www.elmarkholding.eu
IP40

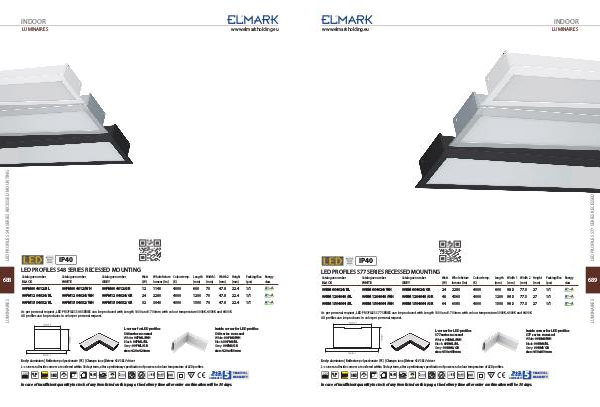

LED PROFILES S77 SERIES RECESSED MOUNTING
Catalogue number
WHITE Catalogue number
GREY Watt
(W) Whole fixture
lumens (lm) Colour temp.
(K) Length
(mm) Width 1 Width 2 Height
(mm)
(mm)
(mm) Packing/Box Energy
(pcs)
class
99BM604024/BL 99BM604024/WH 99BM604024/GR 24 2280 4000 600 98.5 77.5 27 1/1
99BM1204048/BL 99BM1204048/WH 99BM1204048/GR 48 4560 4000 1200 98.5 77.5 27 1/1
99BM1504064/BL 99BM1504064/WH 99BM1504064/GR 64 6080 4000 1500 98.5 77.5 27 1/1
As per personal request, LED PROFILES S77 SERIES can be produced with Length 1000 and 1700mm with colour temperature 3000K, 4000K and 6400K.
All profiles can be produces in color per personal request.
Inside corner for LED profiles
S77 series recessed
White: 99BMI/WH
Black: 99BMI/BL
Grey: 99BMI/GR
size: 450x450mm
L-corner for LED profiles
S77series recessed
White: 99BML/WH
Black: 99BML/BL
Grey: 99BML/GR
size: 450x450mm
Body: aluminium | Reflector: polycarbonate (PC) | Clamps: inox | Driver: 42V SELV driver
L- corner and Inside corners are ordered within 30 days term, after a preliminary specification of power and colour temperature of LED profiles.
50/60
Hz
SMD
90°
Ra>80
>15000
2
40
3+2
standard
+extended
5
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 30 days.
YEAR TOTAL
WARRANTY
689
Catalogue number
BLACK
