INDOOR
LUMINAIRES
690
www.elmarkholding.eu
IP40

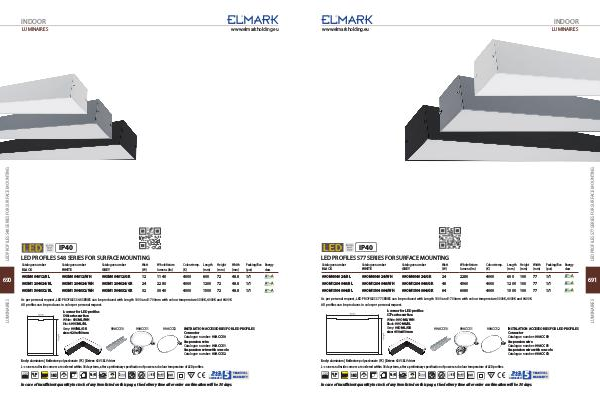

LED PROFILES S48 SERIES FOR SURFACE MOUNTING
Catalogue number
BLACK Catalogue number
WHITE Catalogue number
GREY Watt
(W) Whole fixture
lumens (lm) Colour temp. Length
(K)
(mm) Height
(mm) Width
(mm) Packing/Box Energy
(pcs)
class
99SM604012/BL 99SM604012/WH 99SM604012/GR 12 1140 4000 600 72 48.8 1/1
99SM1204024/BL 99SM1204024/WH 99SM1204024/GR 24 2280 4000 1200 72 48.8 1/1
99SM1504032/BL 99SM1504032/WH 99SM1504032/GR 32 3040 4000 1500 72 48.8 1/1
As per personal request, LED PROFILES S48 SERIES can be produced with Length 1000 and 1700mm with colour temperature 3000K, 4000K and 6400K.
All profiles can be produces in color per personal request.
L-corner for LED profiles
S48series surface
White: 99SML/WH
Black: 99SML/BL
Grey: 99SML/GR
size: 420x420mm
99ACC50
99ACC51
99ACC52
INSTALATION ACCESSORIES FOR LED PROFILES
Connector
Catalogue number: 99ACC50
Suspension wire
Catalogue number: 99ACC51
Suspension wire with console
Catalogue number: 99ACC52
Body: aluminium | Reflector: polycarbonate (PC) | Driver: 42V SELV driver
L- corner and Inside corners are ordered within 30 days term, after a preliminary specification of power and colour temperature of LED profiles.
50/60
Hz
SMD
90°
Ra>80
>15000
2
40
3+2
standard
+extended
5
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 30 days.
YEAR TOTAL
WARRANTY
