INDOOR
www.elmarkholding.eu
LUMINAIRES
IP40

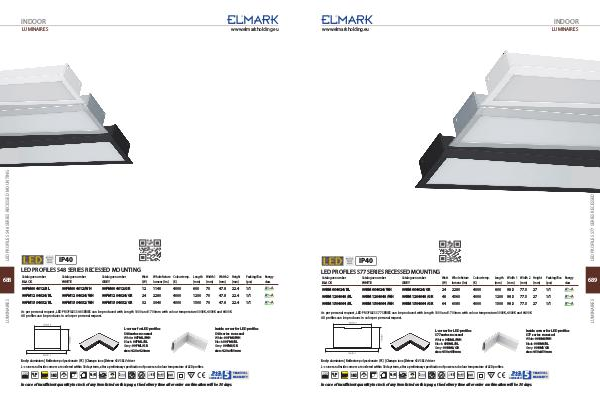

LED PROFILES S48 SERIES RECESSED MOUNTING
688
Catalogue number
BLACK Catalogue number
WHITE Catalogue number
GREY Watt
(W) Whole fixture Colour temp. Length
lumens (lm) (K)
(mm) Width 1 Width 2 Height
(mm)
(mm)
(mm) Packing/Box Energy
(pcs)
class
99FM604012/BL 99FM604012/WH 99FM604012/GR 12 1140 4000 600 70 47.8 22.4 1/1
99FM1204024/BL 99FM1204024/WH 99FM1204024/GR 24 2280 4000 1200 70 47.8 22.4 1/1
99FM1504032/BL 99FM1504032/WH 99FM1504032/GR 32 3040 4000 1500 70 47.8 22.4 1/1
As per personal request, LED PROFILES S48 SERIES can be produced with Length 1000 and 1700mm with colour temperature 3000K, 4000K and 6400K.
All profiles can be produces in color per personal request.
L-corner for LED profiles
S48series recessed
White: 99FML/WH
Black: 99FML/BL
Grey: 99FML/GR
size: 420x420mm
Inside corner for LED profiles
S48 series recessed
White: 99FMI/WH
Black: 99FMI/BL
Grey: 99FMI/GR
size: 420x420mm
Body: aluminium | Reflector: polycarbonate (PC) | Clamps: inox | Driver: 42V SELV driver
L- corner and Inside corners are ordered within 30 days term, after a preliminary specification of power and colour temperature of LED profiles.
50/60
Hz
SMD
90°
Ra>80
>15000
2
40
3+2
standard
+extended
5
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 30 days.
YEAR TOTAL
WARRANTY
