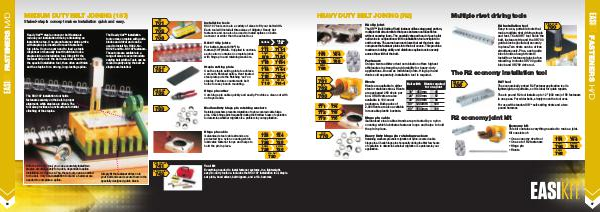

MEDIUM DUTY BELT JOINING (187)
Staked-staple concept makes installation quick and easy.
Ready Set™ staple conveyor belt fasteners
reduce your installation time by eliminating an
installation step. One-piece fastener strips arrive
with staples pre-inserted for each fastener’s
top plate. So you never need to load a staple
dispenser or manually insert individual loose
staples into an installation tool. Simply fit the
fastener strip onto the belt ends and secure in
the special installation tool, then drive and finish
set the staples for a strong, long-lasting splice.
The Ready Set™ installation
tool comes complete with guide
blocks and driver and can be
used to install No. RS62, No.
RS125 and No. RS187 fasteners.
These tools are available in a
range of sizes to accommodate
varying belt widths. Tools can be
moved rapidly along the belt as
staples are installed.
150
701
300
702
600
703
RS187 Clip joints
For belts 4.8mm (3/16”) to
6.4mm (1/4”) thick. Supplied in cartons,
each carton contains 4 complete joints
with hinge pin and retaining washers.
Price code
731
EK300
711
EK450
n/a
732
M/D
733
713
Staple setting plate
Use the staple setting plate to achieve
a smooth, finished splice. Heat treated
steel plate puts the finishing ‘set’ on
staples. Features countersunk bolt
holes for easy bench mounting.
Single
Joint
Cartons
EK600
Price code
The RSC187 installation tool holds
fasteners securely on the belt, in proper
alignment, while staples are driven. The
tool also provides an anvil surface for initial
clinching of the staples.
Installation tools
RSC187 tools come in a variety of sizes to fit your belt width.
Each tool will install all three sizes of Alligator Ready Set
fasteners and can also be used to install splices on belts
narrower or wider than the actual tool.
EK900
EK300
711-1
EK450
712-1
EK600
713-1
EK900
714 714-1
715 715-1
716 716-1
EK1200
EK1500
EK1200
EK1500
Hinge pin cutter
Cuts hinge pin cable quickly and easily. Provides a clean cut with
no frayed ends.
Medium Duty hinge pin retaining washers
Retaining washers prevents migration of nylon-covered cable hinge
pins. Check hinge pins frequently during the first few hours of operation
to determine whether migration is a problem in your application.
Hinge pin cable
Galvanised steel cable strands are
protected by a nylon covering which
lubricates fastener loops and helps to
hold the pin in place.
EK300
721
EK450
722
EK600
723
EK900
724
EK1200
725
EK1500
726
30m Roll
720
With the RSC187 tool, you can accurately install two
staples simultaneously for quick, dependable splice
installation. As light as 2.7kg, these tools can be carried
to the belt. Only one installation tool and a hammer are
needed to complete a splice.
36
6”(150mm)kit
741
742
12”(300mm)kit
Simply fit the fastener strips onto
your belt ends and secure them in the
specially designed guide block.
Tool kit
Everything needed to instal fastener systems, in a lightweight,
easy-to-carry toolbox. Includes the RSC187 installation tool, staple
set plate, hand skiver, belt nippers, and a 1lb. hammer.
