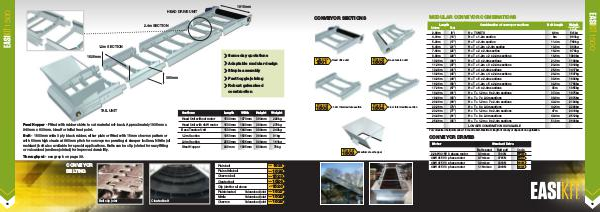

MODULAR CONVEYOR COMBINATIONS CONVEYOR SECTIONS Length CONVEYOR COMBINATIONS Combination of conveyor sections MODULAR Metres 1501 Price Code 1503 Price Code 1502 Head drive unit 1.2m intermediate section Price Code 1504 Base tension unit 2.4m intermediate section Belt length Weight incl. plain belt & motor 2.86m (9’) H + T UNITS 6.6m 541kg 4.06m (13’) H + T + 1.2m section 9m 661kg 5.26m (17’) H + T + 2.4m section 11.4m 760kg 6.46m (21’) H + T + 1.2m + 2.4m section 13.8m 880kg 7.66m (25’) H + T + 2 x 2.4m section 16.2m 979kg 8.86m (29’) H + T + 1.2m + 2 x 2.4m sections 18.6m 1099kg 10.06m (33’) H + T + 3 x 2.4m sections 21.0m 1198kg 11.26m (37’) H + T + 1.2m + 3 x 2.4m sections 23.4m 1318kg 12.46m (41’) H + T + 4 x 2.4m sections 25.8m 1417kg 13.66m (45’) H + T + 1.2m + 4 x 2.4m sections 28.2m 1537kg 14.86m (49’) H + T + 5 x 2.4m sections 30.6m 1636kg 16.06m (53’) H + T + 1.2m + 5 x 2.4m sections 32.6m 1756kg 17.26m (57’) H + T + 6 x 2.4m sections 35m 1855kg 18.46m (61’) H + T + 1.2m + 6 x 2.4m sections 37.4m 1975kg 19.66m (65’) H + T + 7 x 2.4m sections 39.8m 2074kg 20.86m (69’) H + T + 1.2m + 7 x 2.4m sections 42.2m 2194kg 22.06m (73’) H + T + 8 x 2.4m sections 44.6m 2293kg 23.26m (77’) H + T + 1.2m + 8 x 2.4m sections 47m 2413kg 24.46m (81’) H + T + 9 x 2.4m sections 49.4m 2512kg 25.66m (85’) H + T + 1.2m + 9 x 2.4m sections 51.8m 2632kg Price Code Feet LONGER COMBINATIONS AVAILABLE For vulcanised belt joints allow 1.5m extra belt. Maximum length of conveyor depends on application. CONVEYOR DRIVES Motor Price Code 1508 Medium steel hopper 2.2kW 415V 3 phase motor 4kW 415V 3 phase motor 4kW 415V 3 phase motor 4kW 415V 3 phase motor Standard Drive Belt speed 0.3m/sec 0.7m/sec 0.9m/sec 1.16m/sec Belt pull 7880N 4795N 3883N 2946N 1.5kW Code 618 617 615 616 19
