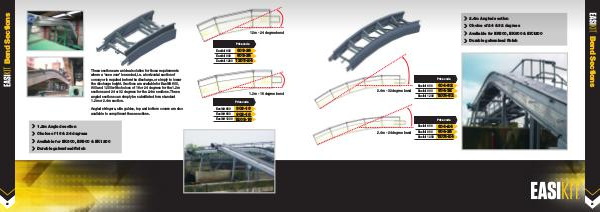

Easikit Catalogue from Coveya Coveya Easikit catalogue | Page 20

1.2m - 24 degree bend
Price code
Easikit 600 603-24
903-24
1203-24
Easikit 900
Easikit 1200
These sections are an ideal solution for those requirements
where a ‘nose over’ is needed, i.e. a horizontal section of
conveyor is required before the discharge, or simply to lower
the discharge height. Sections are available for Easikit 600,
900 and 1200 with choices of 16 or 24 degrees for the 1.2m
sections and 24 or 32 degrees for the 2.4m sections. These
angled sections can simply be substituted for a standard
1.2m or 2.4m section.
Angled stringers, side guides, top and bottom covers are also
available to compliment these sections.
1.2m - 16 degree bend
Price code
Easikit 600 603-16
903-16
1203-16
Easikit 900
Easikit 1200
1.2m Angled section
Choice of 16 & 24 degrees
Available for EK600, EK900 & EK1200
Durable galvanised finish
20
