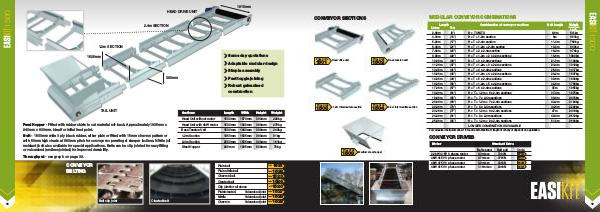

Easikit Catalogue from Coveya Coveya Easikit catalogue | Page 18

1915mm
HEAD DRIVE UNIT
2.4m SECTION
1.2m SECTION
Same day quotations
1525mm
Adaptable modular design
Simple assembly
380mm
Fast toggle joining
Robust galvanised
construction
TAIL UNIT
Feed Hopper - Fitted with rubber skirts to cut material roll-back. Approximately 1935mm x
940mm x 630mm. Ideal for initial feed point.
Belt - 1500mm wide 3 ply black rubber, either plain or fitted with 15mm chevron pattern or
with 50mm high cleats at 860mm pitch for conveyors operating at steeper inclines. Nitrile (oil
resistant) belt also available for special applications. Belts can be clip jointed for easy fitting
or vulcanised (endless jointed) for improved durability.
Sections Length Width Height Weight
Head Unit without motor 1500mm 1870mm 380mm 228kg
Head Unit with 4kW motor 1500mm 1960mm 380mm 279kg
Base Tension Unit 1500mm 1640mm 380mm 240kg
1.2m Section 1350mm 1525mm 380mm 91kg
2.4m Section
Steel Hopper

2550mm 1525mm 380mm 161kg
940mm 1935mm 630mm 70kg
Throughput - see graph on page 39.
CONVEYOR
BELTING
Plain belt Code
Plain nitrile belt Code
Chevron belt Code
Cleated belt Code
Clip joint for all above
18
Belt clip joint
Cleated belt
1521
1522
1523
1524
1526
1527
1528
1529
H/D
Plain/cleated Vulcanised joint Code
Nitrile Vulcanised joint Code
Chevron Vulcanised joint Code
