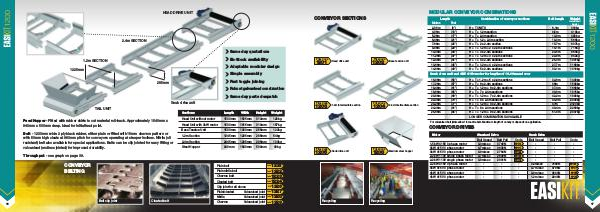

Easikit Catalogue from Coveya Coveya Easikit catalogue | Page 16

HEAD DRIVE UNIT
2.4m SECTION
Same day quotations
Ex-Stock availability
1.2m SECTION
Adaptable modular design
1225mm
Simple assembly
Fast toggle joining
285mm
Robust galvanised construction
Same day parts despatch
Snub drive unit
TAIL UNIT
Feed Hopper - Fitted with rubber skirts to cut material roll-back. Approximately 1540mm x
940mm x 500mm deep. Ideal for initial feed point.
Belt - 1200mm wide 2 ply black rubber, either plain or fitted with 15mm chevron pattern or
with 50mm high cleats at 860mm pitch for conveyors operating at steeper inclines. Nitrile (oil
resistant) belt also available for special applications. Belts can be clip jointed for easy fitting or
vulcanised (endless jointed) for improved durability.
Sections Length Width Height Weight
Head Unit without motor 1500mm 1525mm 310mm 122kg
Head Unit with 3kW motor 1500mm 1615mm 310mm 157kg
Base Tension Unit 1500mm 1320mm 255mm 120kg
1.2m Section 1245mm 1225mm 285mm 54kg
2.4m Section
Steel Hopper

2445mm 1225mm 285mm 100kg
940mm 1540mm 500mm 40kg
Throughput - see graph on page 39.
CONVEYOR
BELTING
Plain belt Code
Plain nitrile belt Code
Chevron belt Code
Cleated belt Code
Clip joint for all above
16
Belt clip joint
Cleated belt
1221
1222
1223
1224
1226
1227
1228
1229
H/D
Plain/cleated Vulcanised joint Code
Nitrile Vulcanised joint Code
Chevron Vulcanised joint Code
