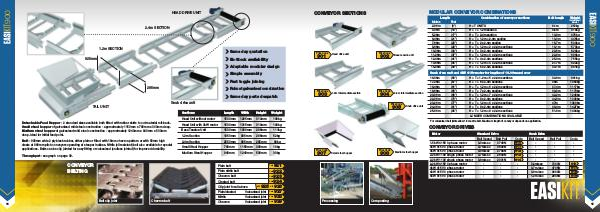

MODULAR CONVEYOR COMBINATIONS CONVEYOR SECTIONS Length Combination of conveyor sections MODULAR CONVEYOR COMBINATIONS Metres Feet 901 Head drive unit Price Code 902 Base tension unit (9’) (13’) (17’) (21’) (25’) (29’) (33’) (37’) (41’) (45’) (49’) H + T UNITS H + T + 1.2m section H + T + 2.4m section H + T + 1.2m + 2.4m section H + T + 2 x 2.4m section H + T + 1.2m + 2 x 2.4m sections H + T + 3 x 2.4m sections H + T + 1.2m + 3 x 2.4m sections H + T + 4 x 2.4m sections H + T + 1.2m + 4 x 2.4m sections H + T + 5 x 2.4m sections Weight incl. plain belt & motor 6.1m 8.5m 10.9m 13.3m 15.7m 18.1m 20.5m 22.9m 25.3m 27.7m 30.1m 252kg 319kg 378kg 445kg 503kg 570kg 629kg 696kg 755kg 822kg 881kg 32.6m 35m 37.4m 39.8m 42.2m 44.6m 47m 49.4m 51.8m 991kg 1050kg 1117kg 1176kg 1243kg 1302kg 1369kg 1427kg 1494kg Price Code 2.86m 4.06m 5.26m 6.46m 7.66m 8.86m 10.06m 11.26m 12.46m 13.66m 14.86m Belt length Snub drum unit and 4kW 415v motor for lengths of 16.06m and over Price Code 903 1.2m intermediate section Price Code 904 2.4m intermediate section Price Code 905 Snub drive unit 16.06m 17.26m 18.46m 19.66m 20.86m 22.06m 23.26m 24.46m 25.66m (53’) (57’) (61’) (65’) (69’) (73’) (77’) (81’) (85’) H + T + 1.2m + 5 x 2.4m sections H + T + 6 x 2.4m sections H + T + 1.2m + 6 x 2.4m sections H + T + 7 x 2.4m sections H + T + 1.2m + 7 x 2.4m sections H + T + 8 x 2.4m sections H + T + 1.2m + 8 x 2.4m sections H + T + 9 x 2.4m sections H + T + 1.2m + 9 x 2.4m sections LONGER COMBINATIONS AVAILABLE For vulcanised belt joints allow 1.5m extra belt. Maximum length of conveyor depends on application. CONVEYOR DRIVES Motor Price Code 907 Small steel hopper Processing Price Code 908 Composting Medium steel hopper Standard Drive Snub Drive 4 Belt Speed Belt Pull Code Belt Speed Belt Pull Code 1.5kW 415V 3 phase motor 0.3m/sec 3749N 610 - - - 3kW 415V 3 phase motor 0.7m/sec 3602N 611 - - - 3kW 415V 3 phase motor 0.9m/sec 2764N 612 - - - 2.2kW 110V single phase motor 0.7m/sec 2639N 613 - - - 2.2kW 110V single phase motor 0.9m/sec 2031N 614 - - - 2.2kW 415V 3 phase motor - - - 0.3m/sec 7880N 618 4kW 415V 3 phase motor - - - 0.7m/sec 4795N 617 4kW 415V 3 phase motor - - - 0.9m/sec 3883N 615 4kW 415V 3 phase motor - - - 1.2m/sec 2946N 616 15
