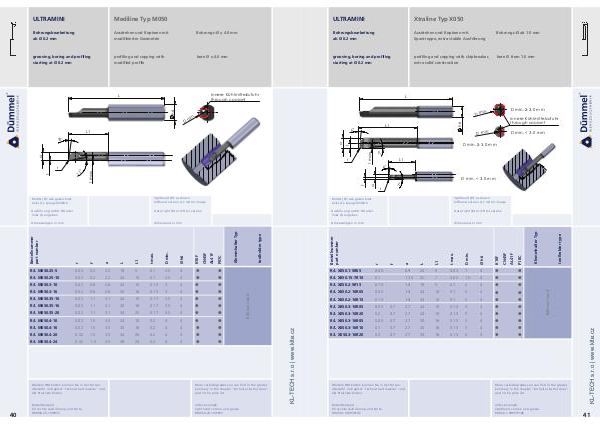

ULTRAMINI Xtraline Typ X050 Bohrungsbearbeitung
ab Ø 0.2 mm Ausdrehen und Kopieren mit
Spantreppe, extra stabile Ausführung Bohrungs-Ø ab 1.0 mm
grooving, boring and profiling
starting at Ø 0.2 mm profiling and copying with chipbreaker,
extra solid construction bore Ø from 1.0 mm
L
D min. ≥ 3.0 mm
in.
D m
D min.
D min. < 3.0 mm
D min. ≥ 3.0 mm
r
L1
6°
innere Kühlmittelzufuhr
through coolant
L1
6°
0.03 1 4
7 0.05 1.5 4
R/L X050.2-5R15 0.15 1.8 19 5 0.1 2 4
R/L X050.2-10R05 0.05 1.8 24 10 0.1 2 4
R/L X050.2-10R15 0.15 1.8 24 10 0.1 2 4
R/L X050.3-10R05 0.05 0.7 2.7 24 10 0.15 3 4
R/L X050.3-10R20 0.2 0.7 2.7 24 10 0.15 3 4
R/L X050.3-16R05 0.05 0.7 2.7 30 16 0.15 3 4
R/L X050.3-16R10 0.1 0.7 2.7 30 16 0.15 3 4
R/L X050.3-16R20 0.2 0.7 2.7 30 16 0.15 3 4
Weitere HM Sorten können Sie in der Sorten-
übersicht im Kapitel "Technische Hinweise" und
der Preisliste finden. More carbide grades you can find in the grades
summary in the chapter "technical instructions"
and in the price list.
Bestellbeispiel:
für rechte Ausführung und Sorte
RX050.1-5R05/P18C order-example:
righthand version and grade
RX050.1-5R05/P18C
5 22
toolholder
20 1.35 0.9 0.1 0.05 R/L X050.15-7R10 R/L X050.1-5R05 dimensions in mm
Abmessungen in mm state right (R) or left (L) version
Ausführung rechts (R) oder
links (L) angeben righthand (R): as shown
lefthand version (L): mirror image
Rechts (R): wie gezeichnet
Links (L): spiegelbildlich
r
Typ
D min. < 3.0 mm
41
